Be sure to calibrate your Trackit/Trackt SR before your first use, after scanning environment temperature changes, or after transportation.
It's recommended to calibrate your Trackit/Trackt SR after one week of use or when a high-accuracy scan is required.
¶ 1. Precautions
- Ensure that the Tracker Tripod, Scanner Tripod, and Calibration Board Tripod are positioned on a stable and solid surface.
- Avoid grasping or rubbing the Scanner, Calibration Pole, and the markers on the Calibration Board by hand during use.
- Always ensure the computer is connected to a power supply when using the product.
- Trackit offers two calibration options: desktop and ground. Choose the one that best suits your workplace.
- Throughout the calibration process, ensure that no other objects are in the Tracker's field of view.
- Don't move the device while it indicates "Calibration in progress."
Note: When performing ground calibration, adjust all three legs of the Tracker tripod to the shortest length, and set the angle of each leg to the third level, 80°. Then, adjust the central column to a proper height to ensure that the Tracker aligns with the designated position.
- Trackit SR calibration supports wired connection only.
- Ensure the Tracker and Scanner’s cameras are not blocked during the whole process.
- Ensure that no other objects are in the Tracker's field of view throughout the calibration process.
- Don’t move the device while calibration is in progress.
- Ensure the computer is connected to a power supply during calibration.
- Avoid grasping or rubbing the Scanner, Calibration Pole, and the markers on the Calibration Board by hand during use.
¶ 2. Scanner Calibration
1) Set up Tracker's Tripod
Step 1: Pull the legs outwards to unfold the tripod.
Step 2: Continue pulling the legs down until they lock into place. (A click sound indicates it has locked into one of the three preset positions shown in descending order.)
Step 3: Adjust the center column and the legs to your required height as shown in the diagram.
Note: If you need a wider leg spread, follow the operation in the video.
1) Environment Setup
2) Install Tracker

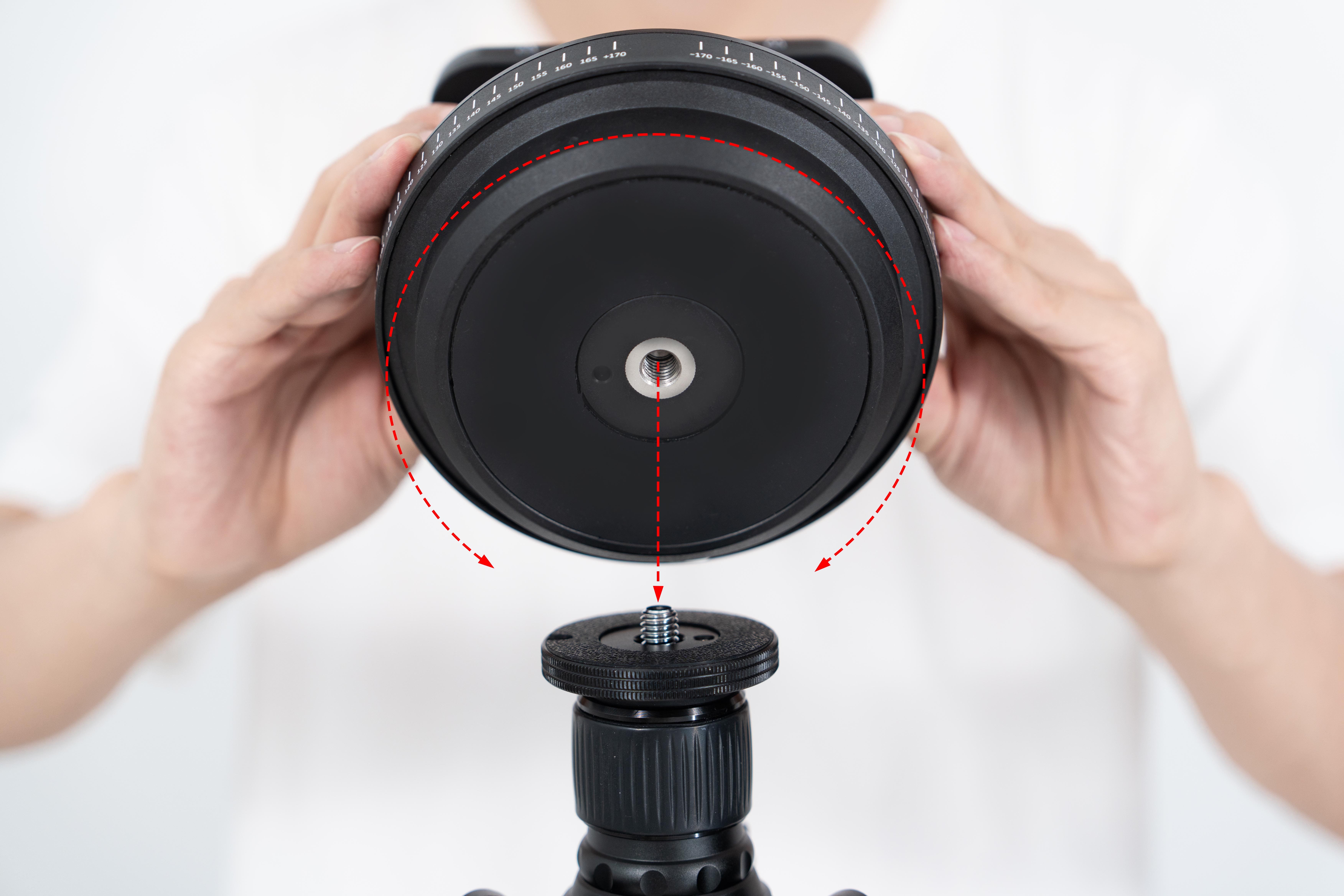

Step 1: Align the Tracker Gimbal’s screw hole with the tripod screw, then rotate the gimbal until securely attached to the tripod.
Step 2: Slide the Quick Release Plate at the bottom of the Tracker into the groove of the Quick Release Clamp while ensuring that the central white lines are aligned. Then, tighten the locking knob clockwise.
3) Connect Tracker

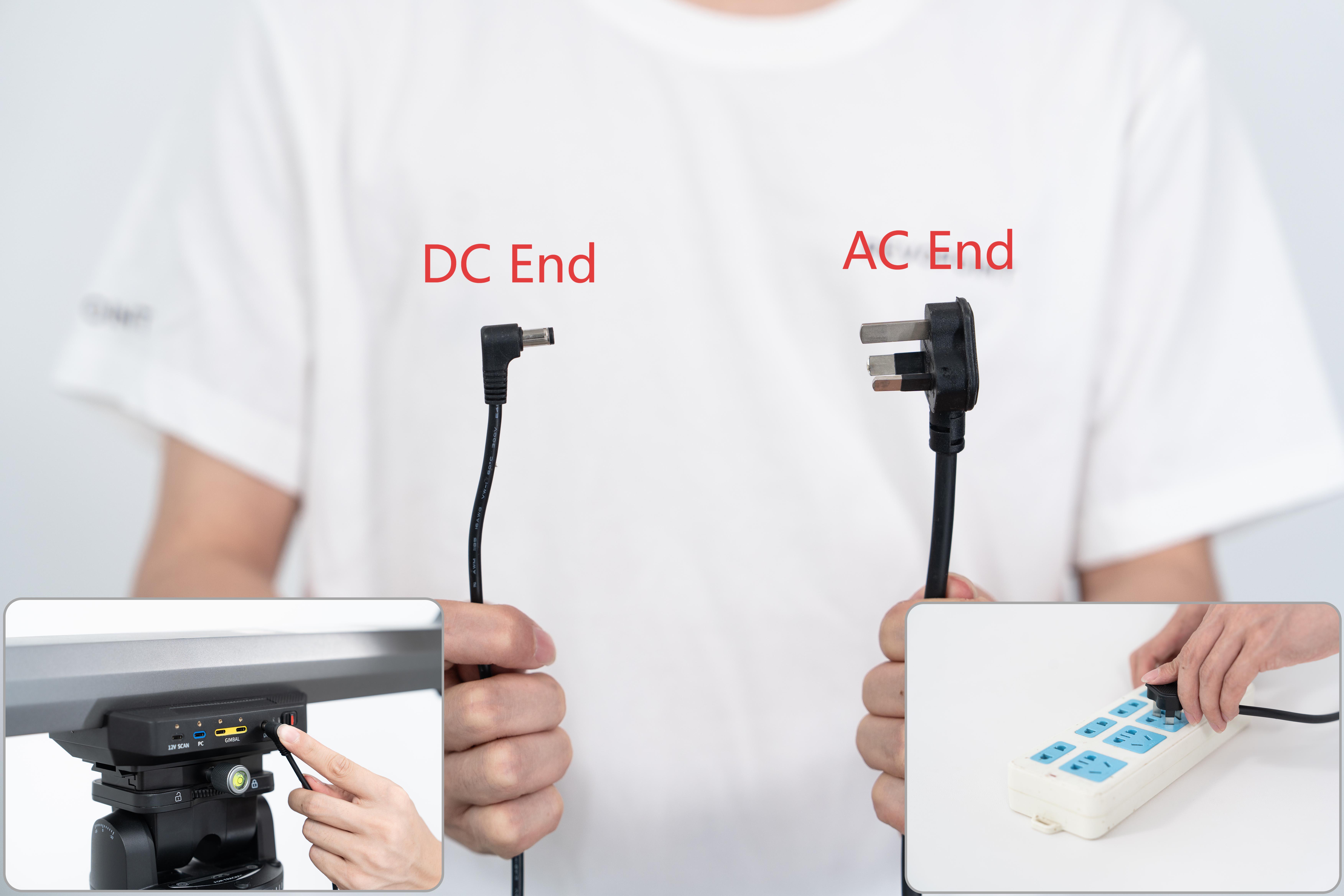

Step 1: Connect the Power Adapter’s DC end to Tracker’s “12V DC” port, and AC end to a power supply.

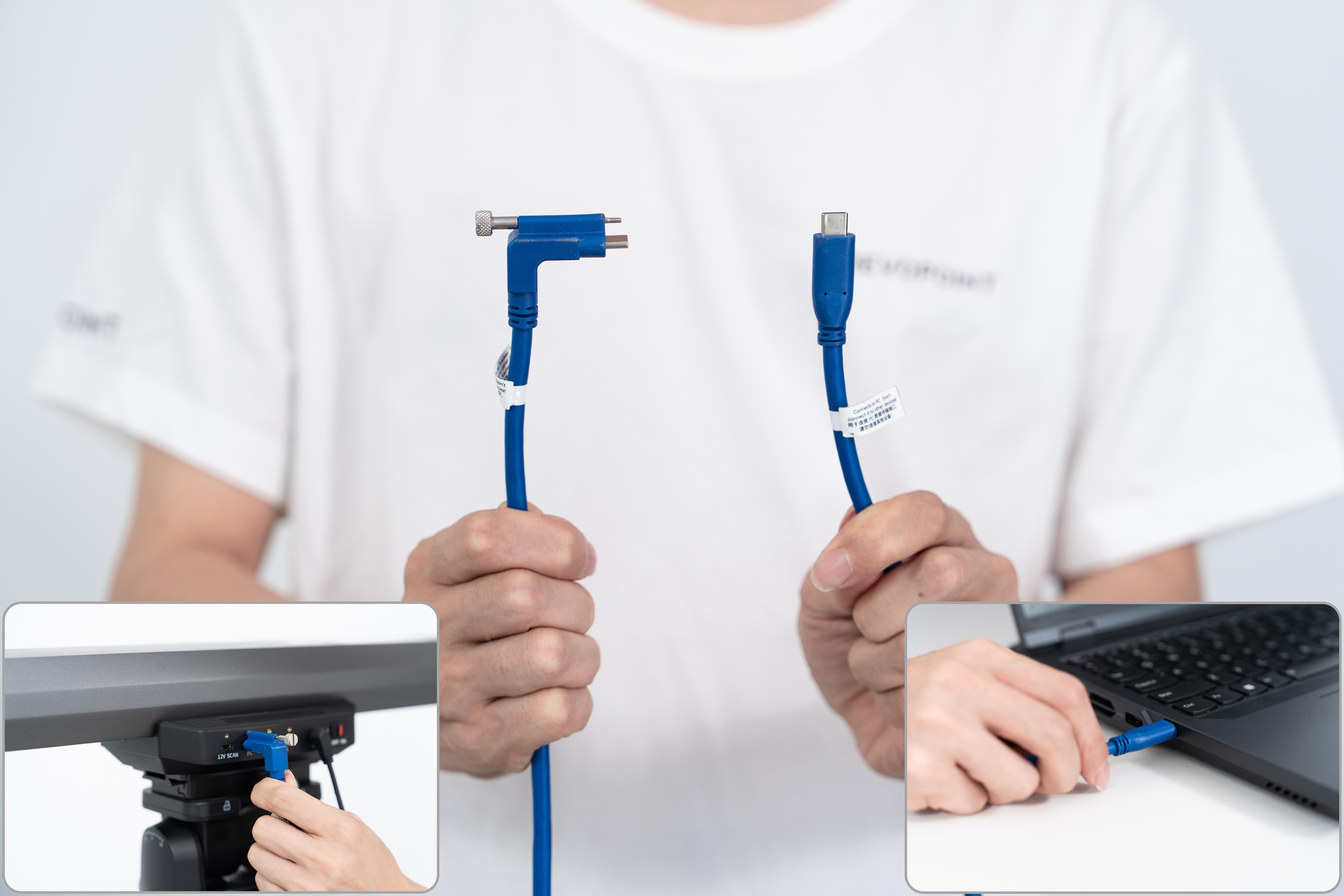

Step 2: Connect the PC Cable’s L-shaped end to Tracker’s “PC” port and tighten the screws. Insert straight end into a USB Type-C port on your PC.
4) Connect Scanner
Connect the Scanner Cable’s L-shaped end to Tracker’s “12V SCANNER” port and tighten the screws. Connect straight end to the USB Type-C port on the Scanner and tighten the screws.

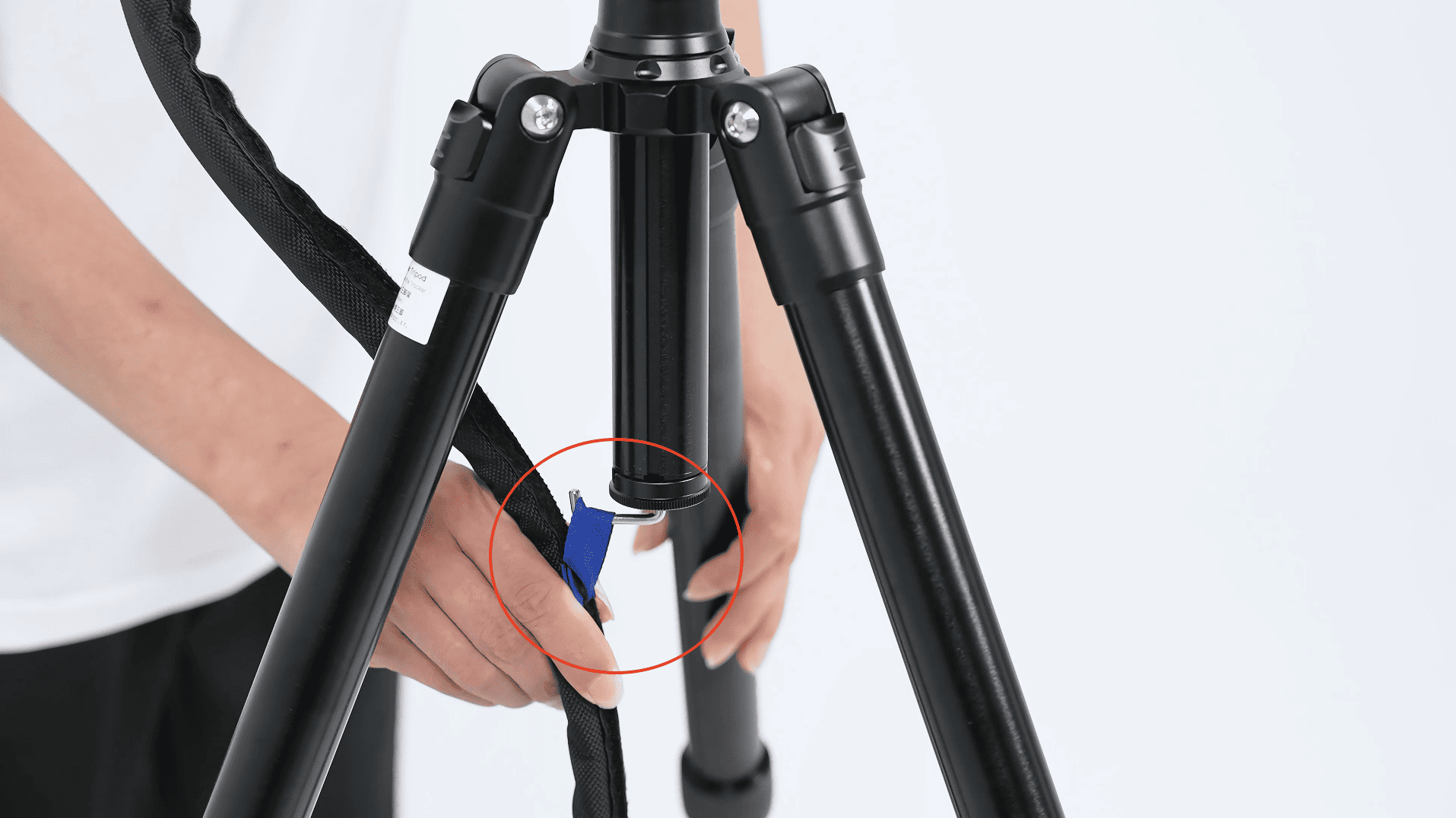

Attach the hanging loop on the cable sleeve to the hook at the bottom of the Tracker Tripod's central column.
5) Power Trackit

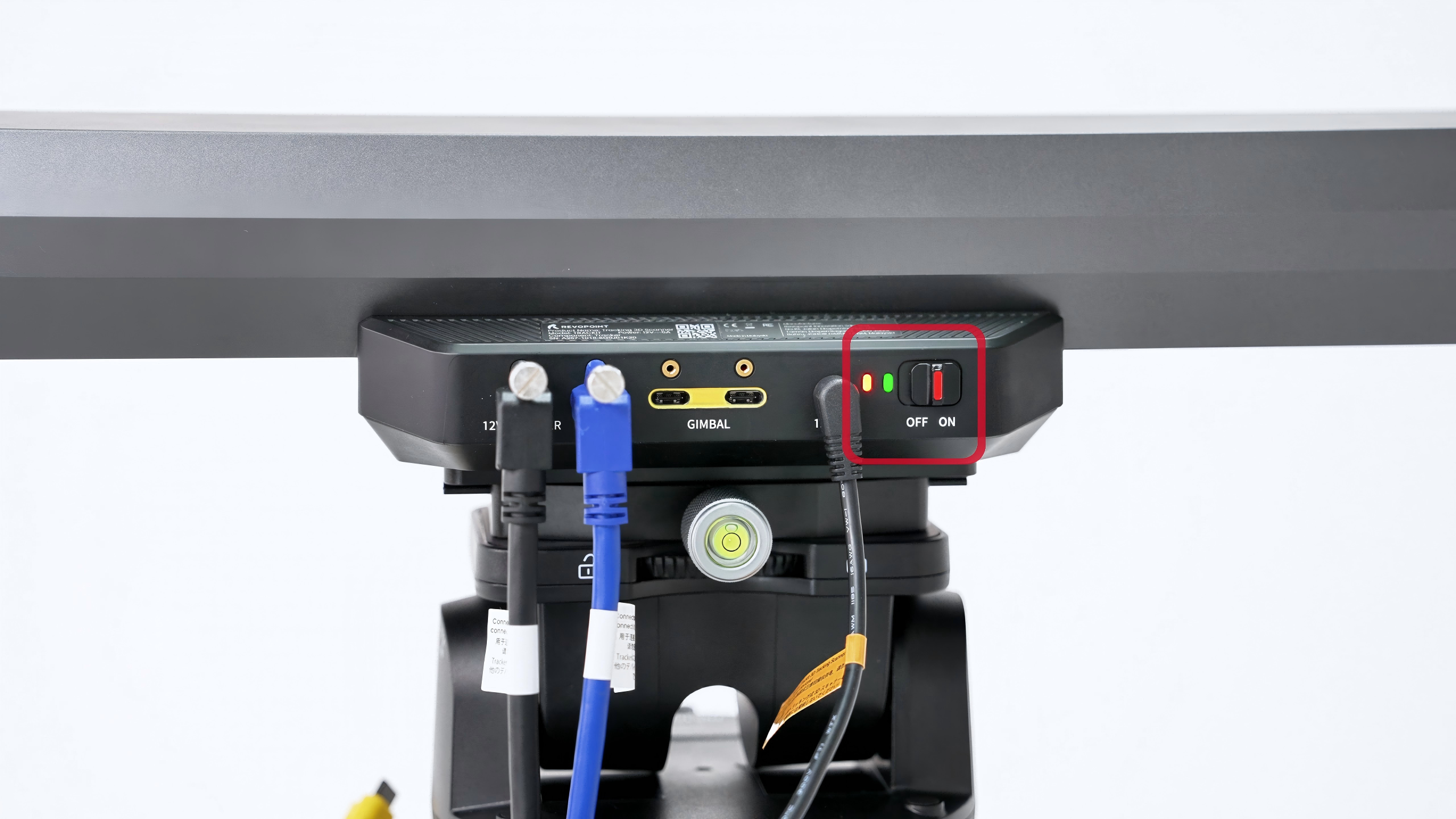

Turn on the power switch on the Tracker’s back. When the right LED turns green and the software interface shows Scanner and Tracker connected, it’s ready.
6) Enter the Calibration Program

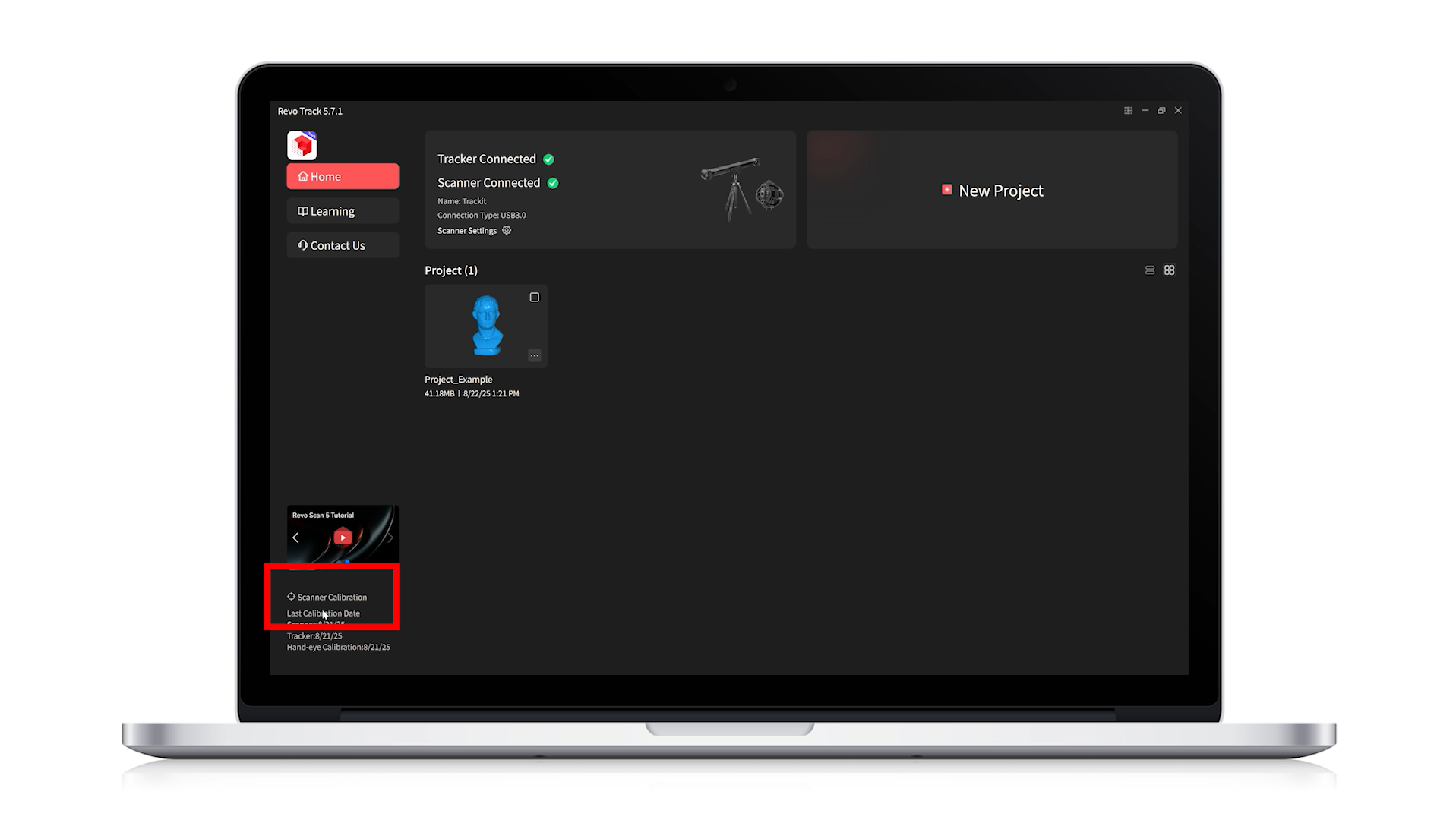

Open the software, and click the "Scanner Calibration" in the bottom left corner to enter the calibration program.
For the initial calibration, it is recommended to perform Full Calibration. After entering the calibration process, the software will automatically detect thetemperature of both the Tracker and Scanner.
- If the Tracker temperature is too high, adjust the operating temperature and try again;
- If the Tracker temperature is normal or too low, the software will automatically preheat the Tracker.
For best accuracy, wait until preheating is complete and the Tracker has reached the proper operating temperature before starting calibration. Then, follow the steps below to proceed with the Scanner Calibration.
7) Import SN Info

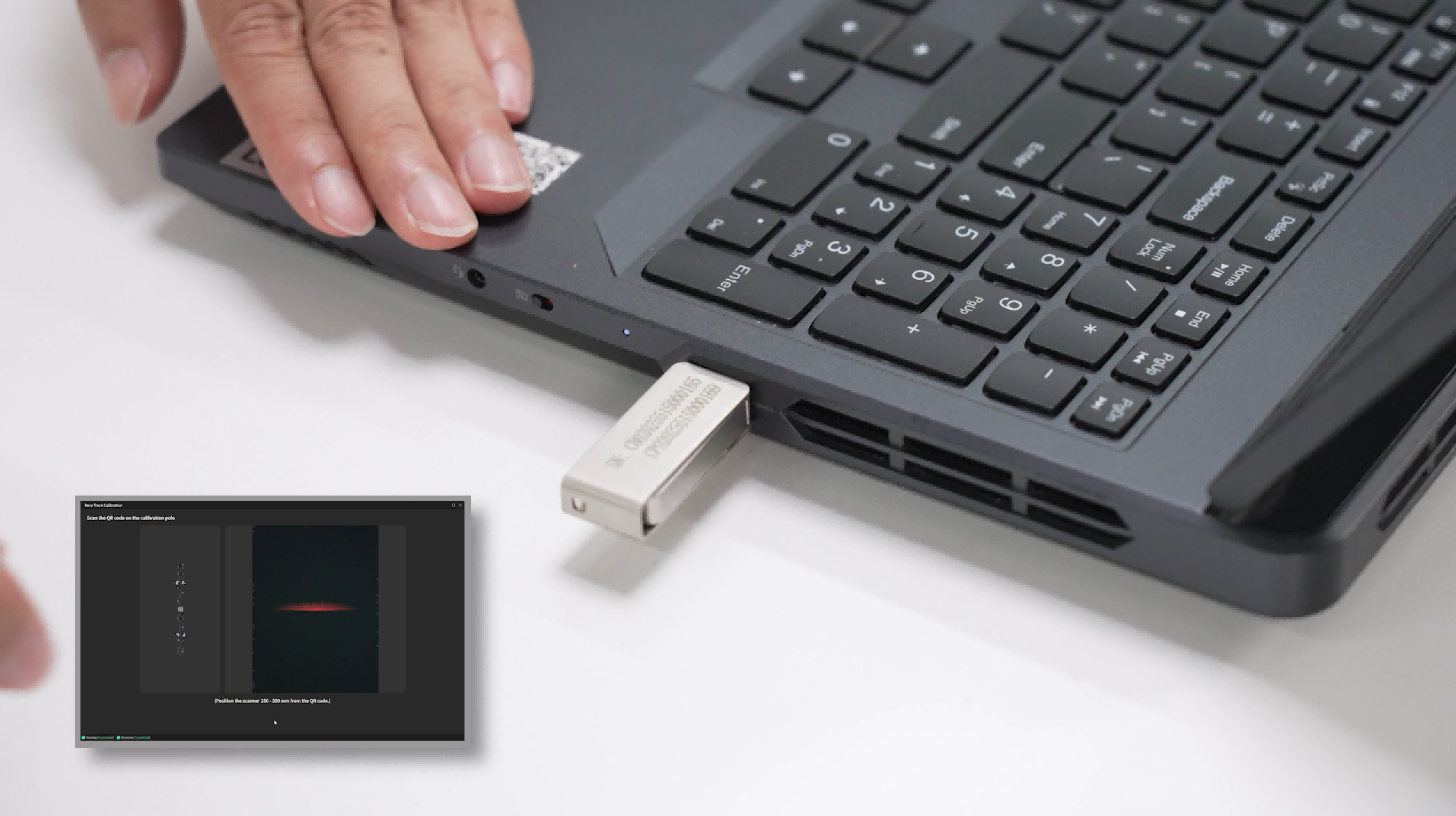

Follow the on-screen prompts to insert the USB Flash Drive into your PC.
.png)

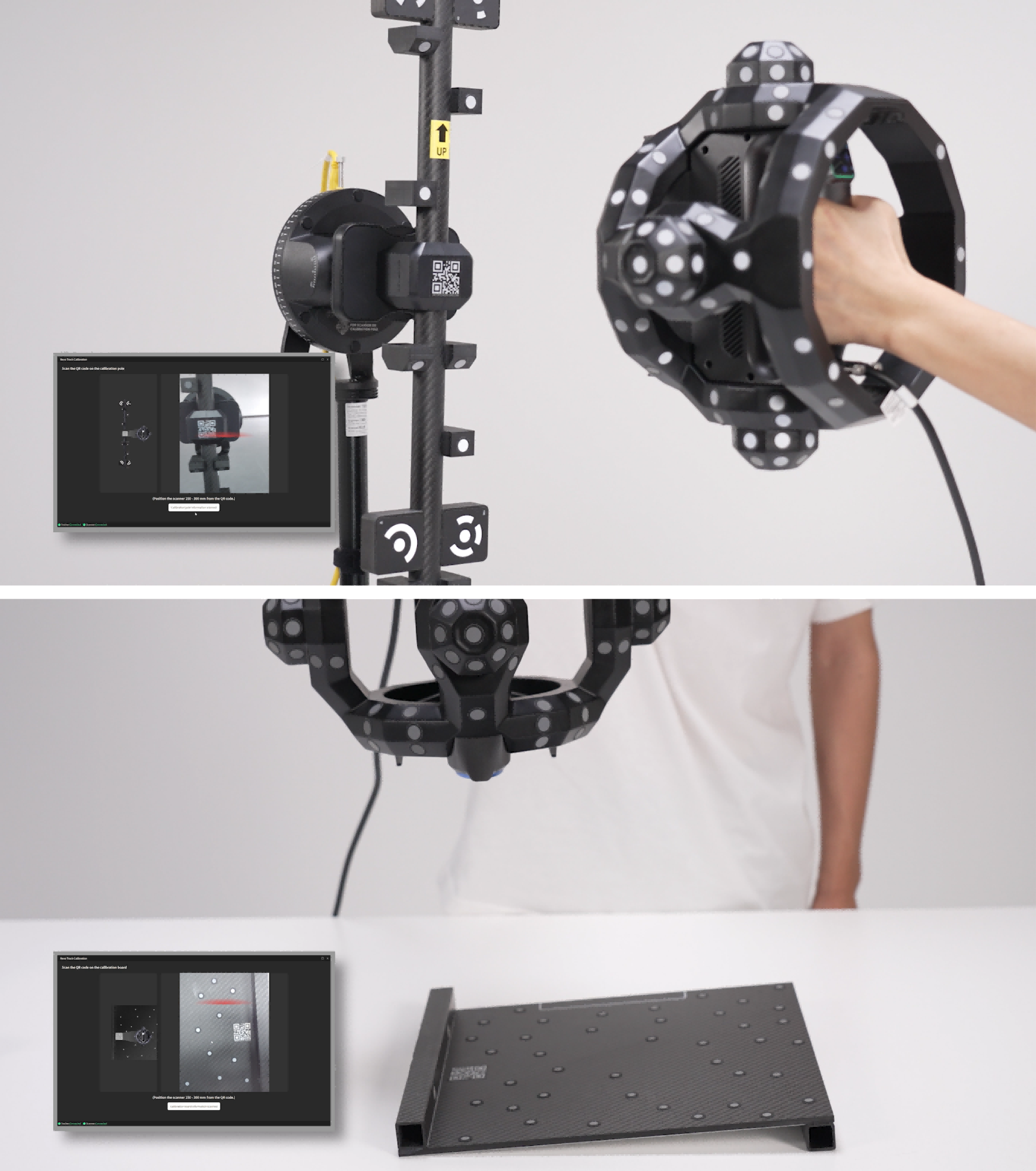

Then, scan the QR codes on the Calibration Pole and the Calibration Board.
Note:The USB Flash Drive is preset with the name "Revopoint." Do not rename it, as this may cause import errors.
.png)

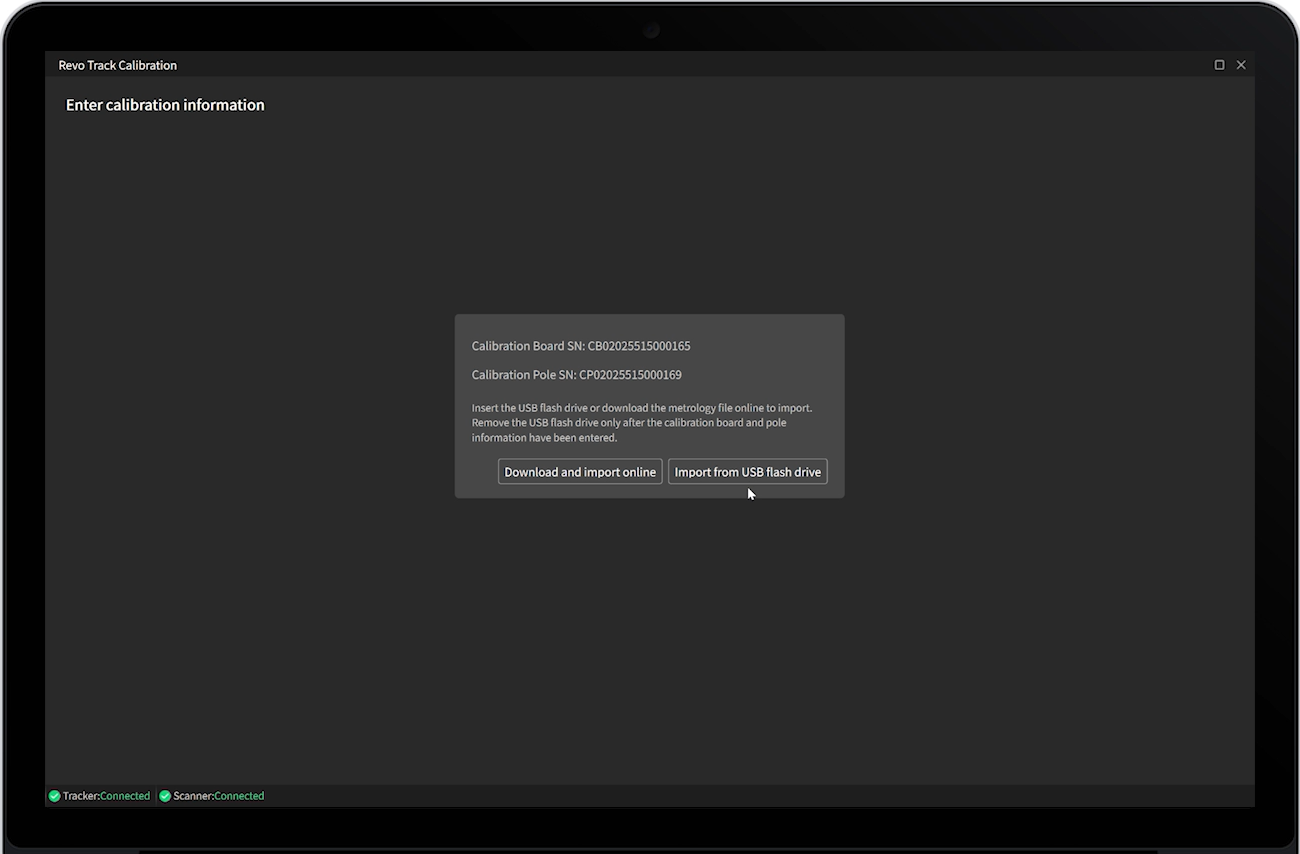

Select "Download and Import Online" or "Import from USB Flash Drive" to import their SN info.
8) Scanner Accuracy Check

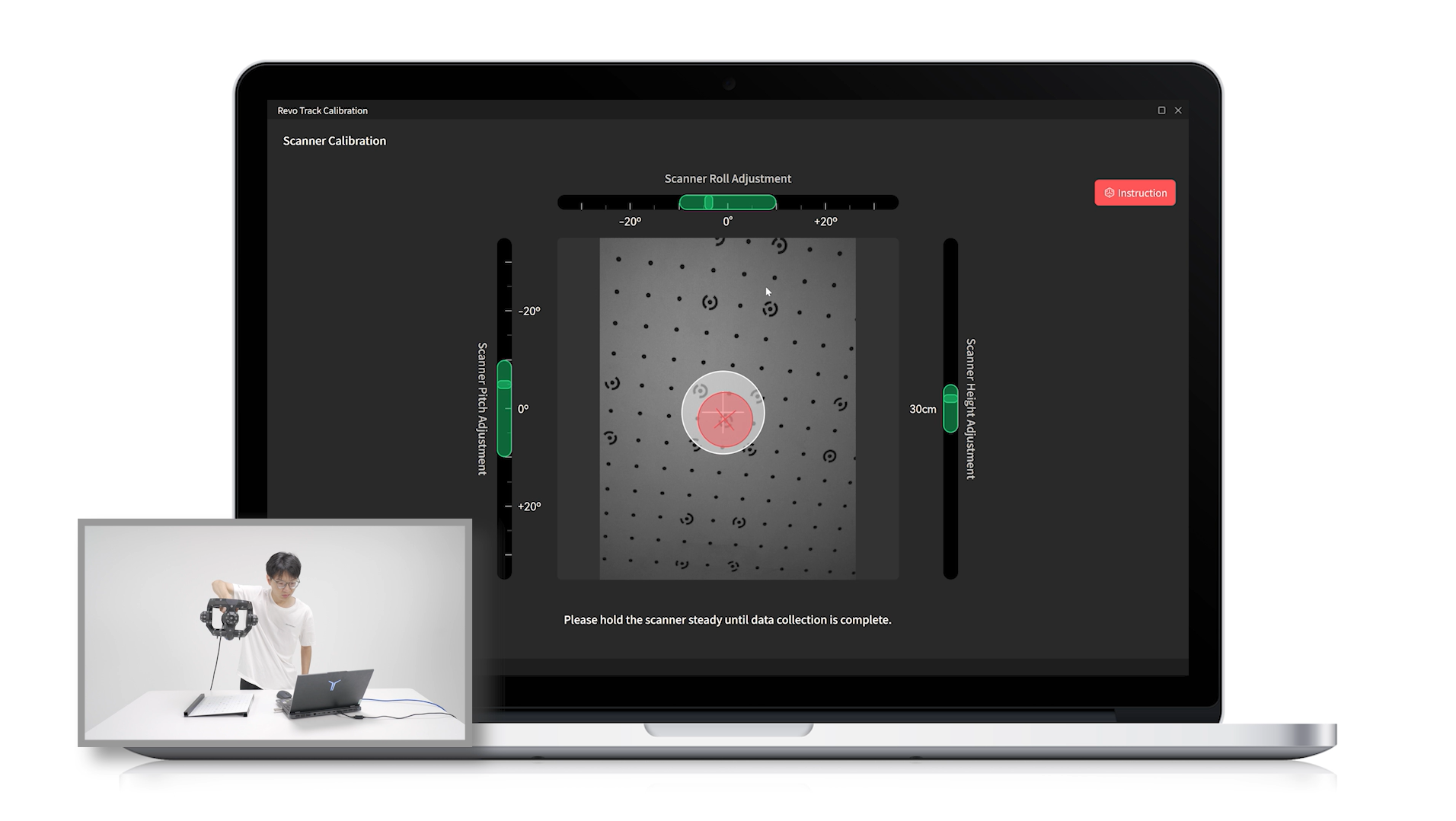

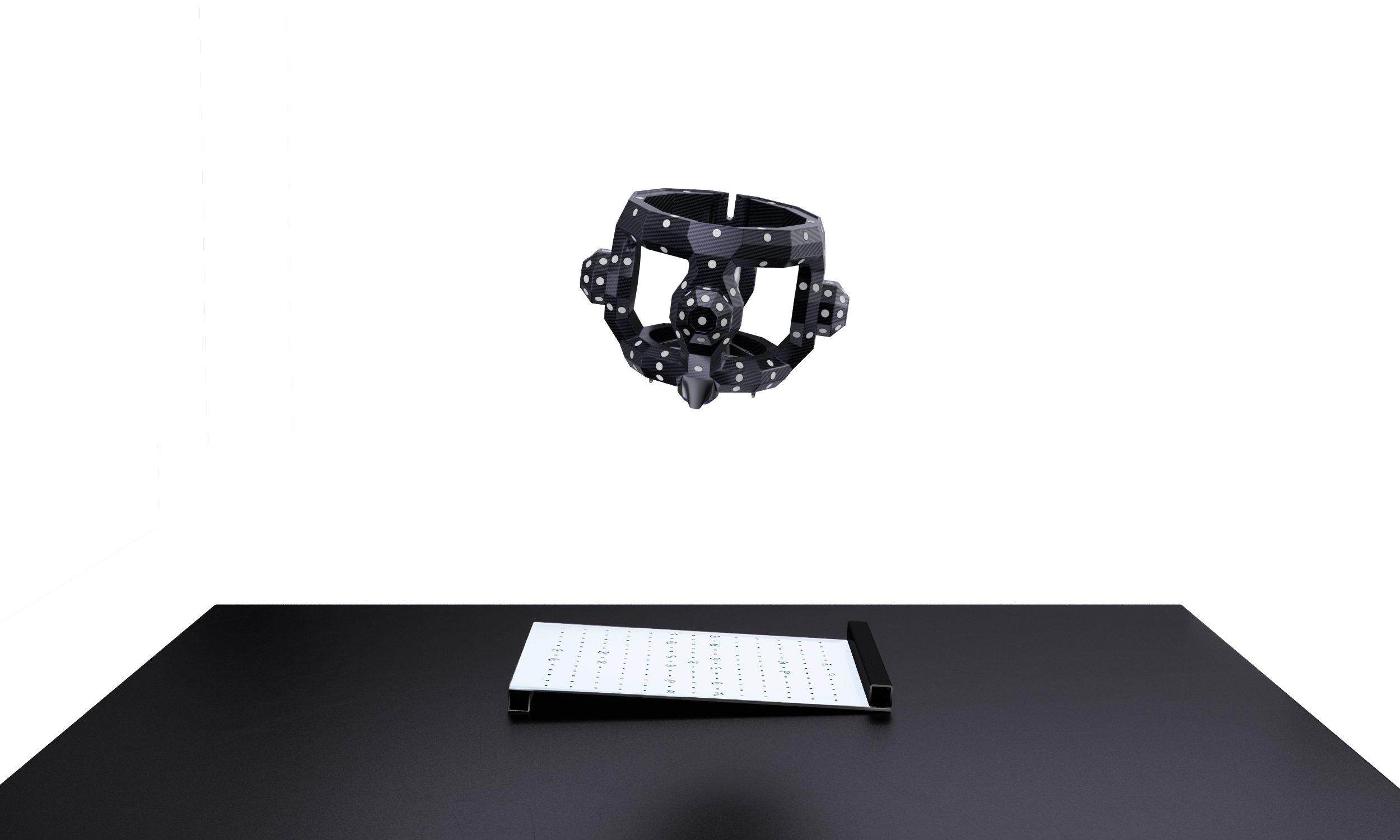

Place the Calibration Board flat on a table with the white side facing up. Hold the Scanner, and follow the on-screen prompts for Scanner accuracy check. If accuracy check is not qualified, click "Start Calibration" to calibrate.
9) Start Scanner Calibration
Calibrate the Scanner at different heightrs and directions according to software prompts.
After Scanner calibration, the software calculates the results. If qualified, click "Continue" to proceed to the Tracker accuracy check and calibration.
1) Device Accuracy Check
Before starting calibration, Revo Track allows you to check the device accuracy to determine whether calibration is necessary.

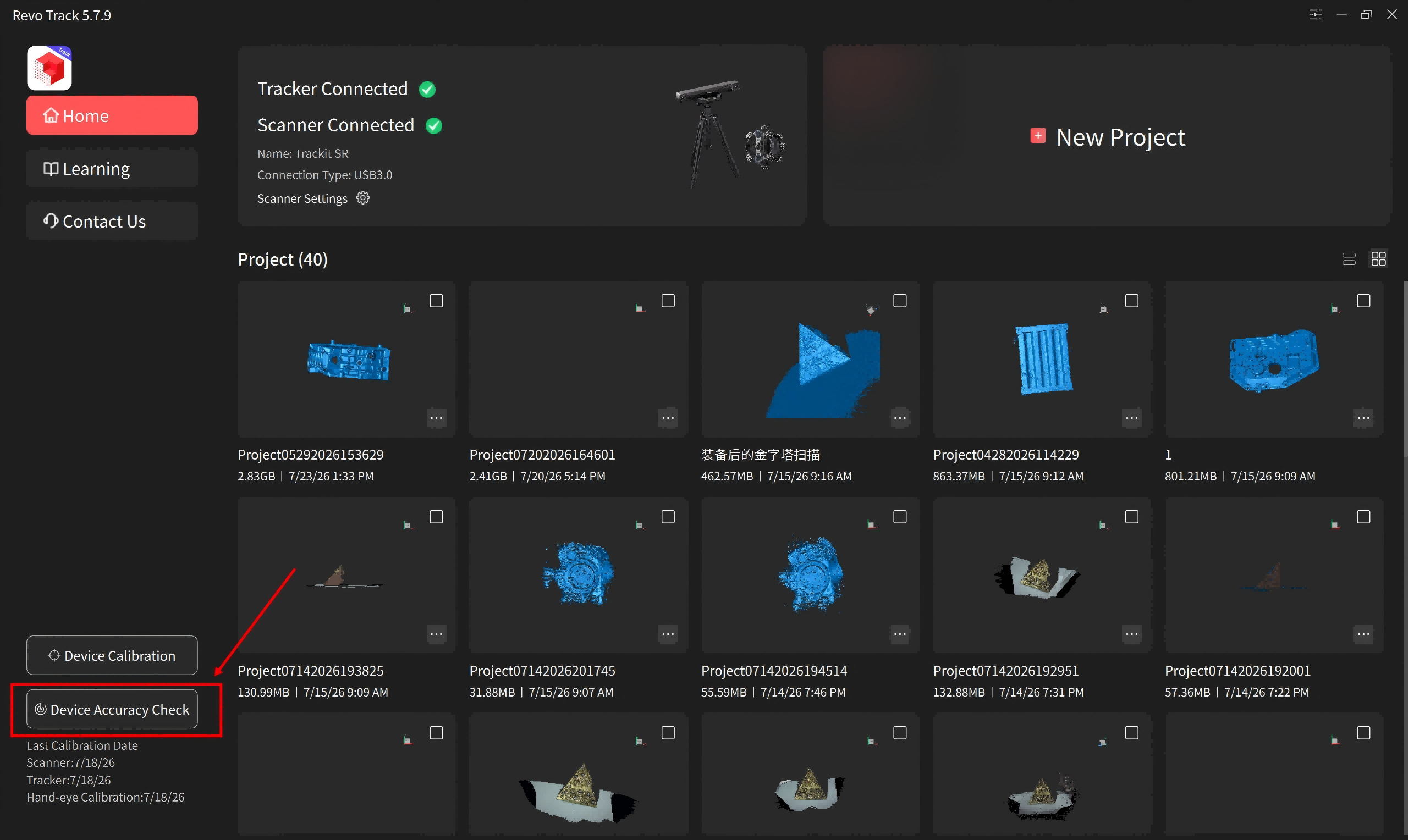

① On the lower-left corner of the software home page, click Device Accuracy Check to enter the accuracy check interface.

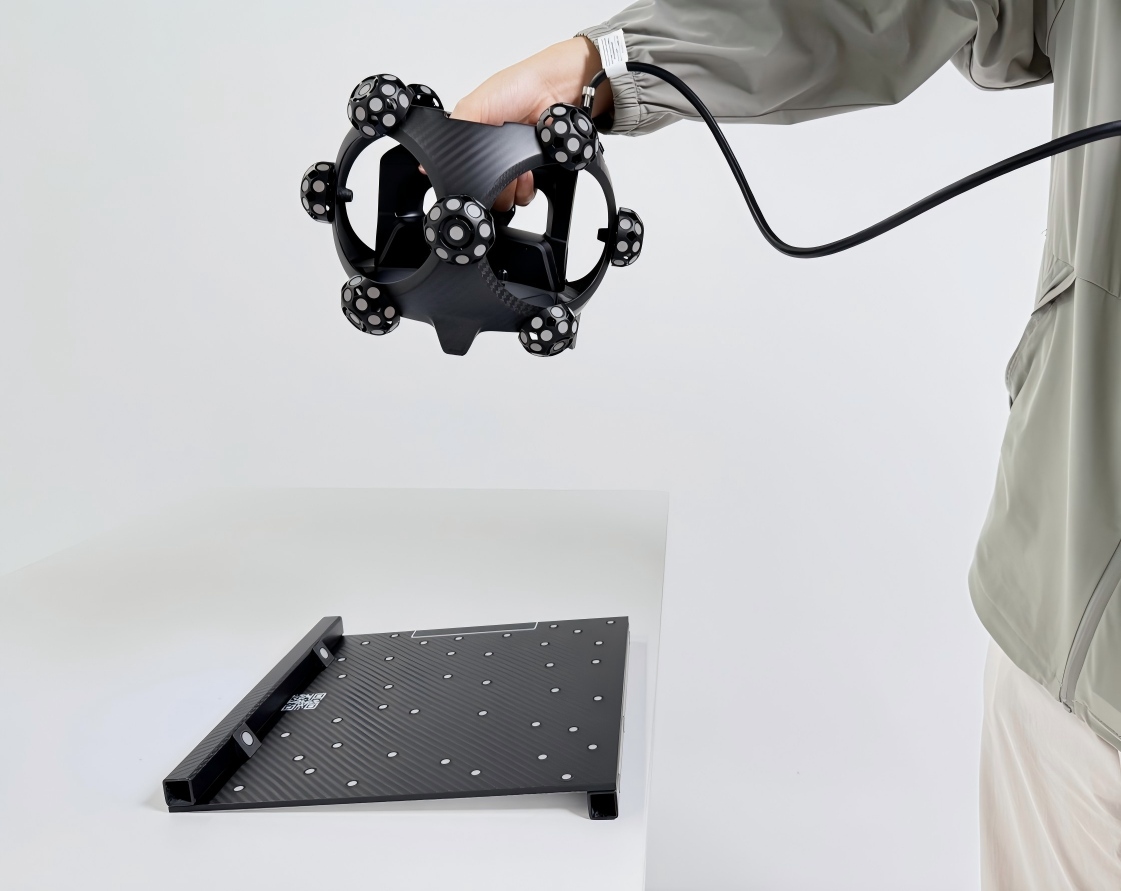

② Scan the QR code on the back of the Calibration Board with the Scanner, then click "Download and Import Online" to import the calibration information.

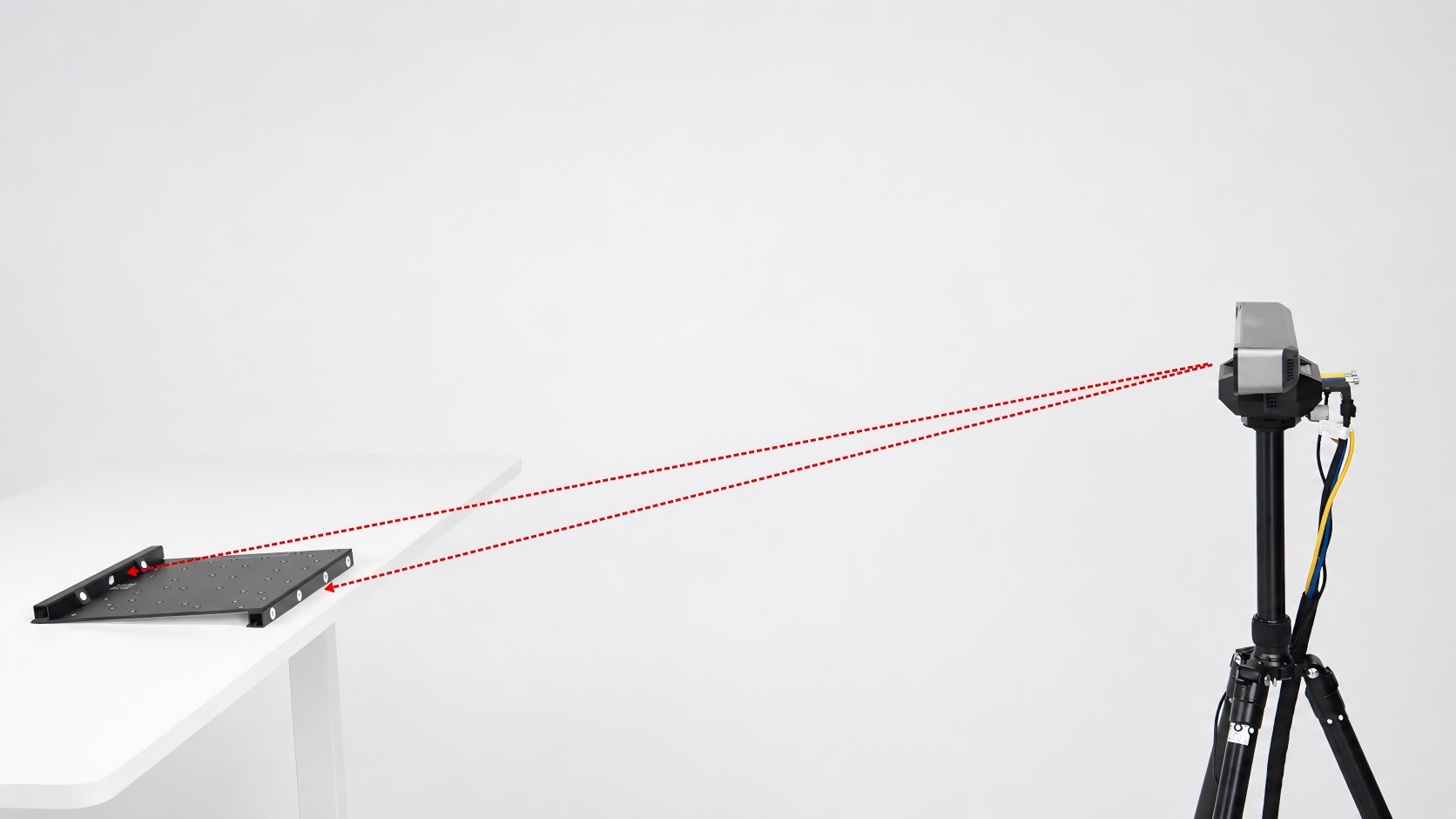

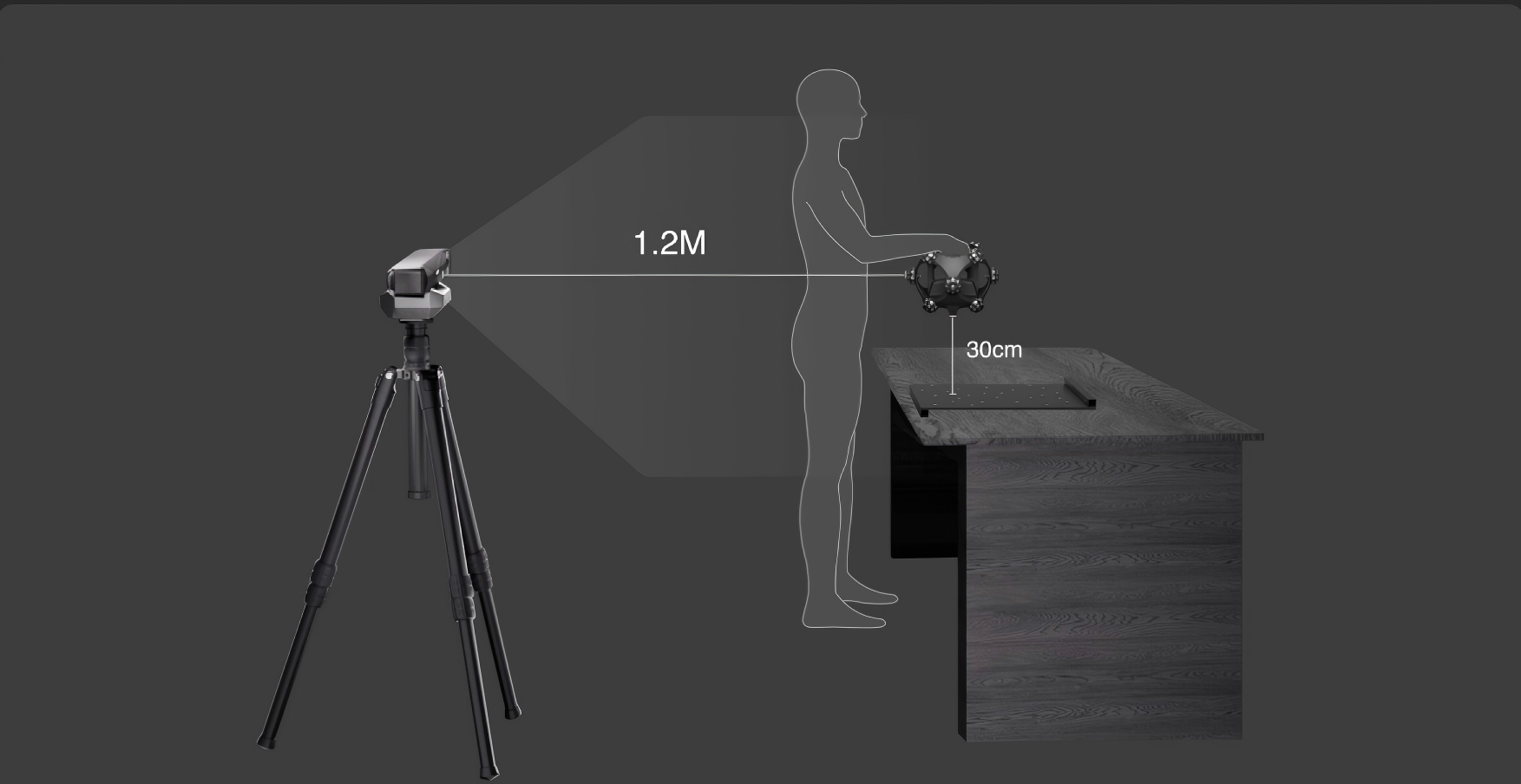

③ Place the Calibration Board with the side markers facing the Tracker. Then move the Tracker as instructed until it reaches the on-screen guide position. The software will automatically enter the calibration page.
.png){kind=tracking}
④ Hold the Scanner facing the Calibration Board, and rotate it as instructed on the screen to complete the accuracy check.
Note:When holding the Scanner, avoid obstructing the Tracker's FOV. Ensure that the Tracker maintains a clear view of both the Scanner and the Calibration Board.
2) Enter the Calibration Process

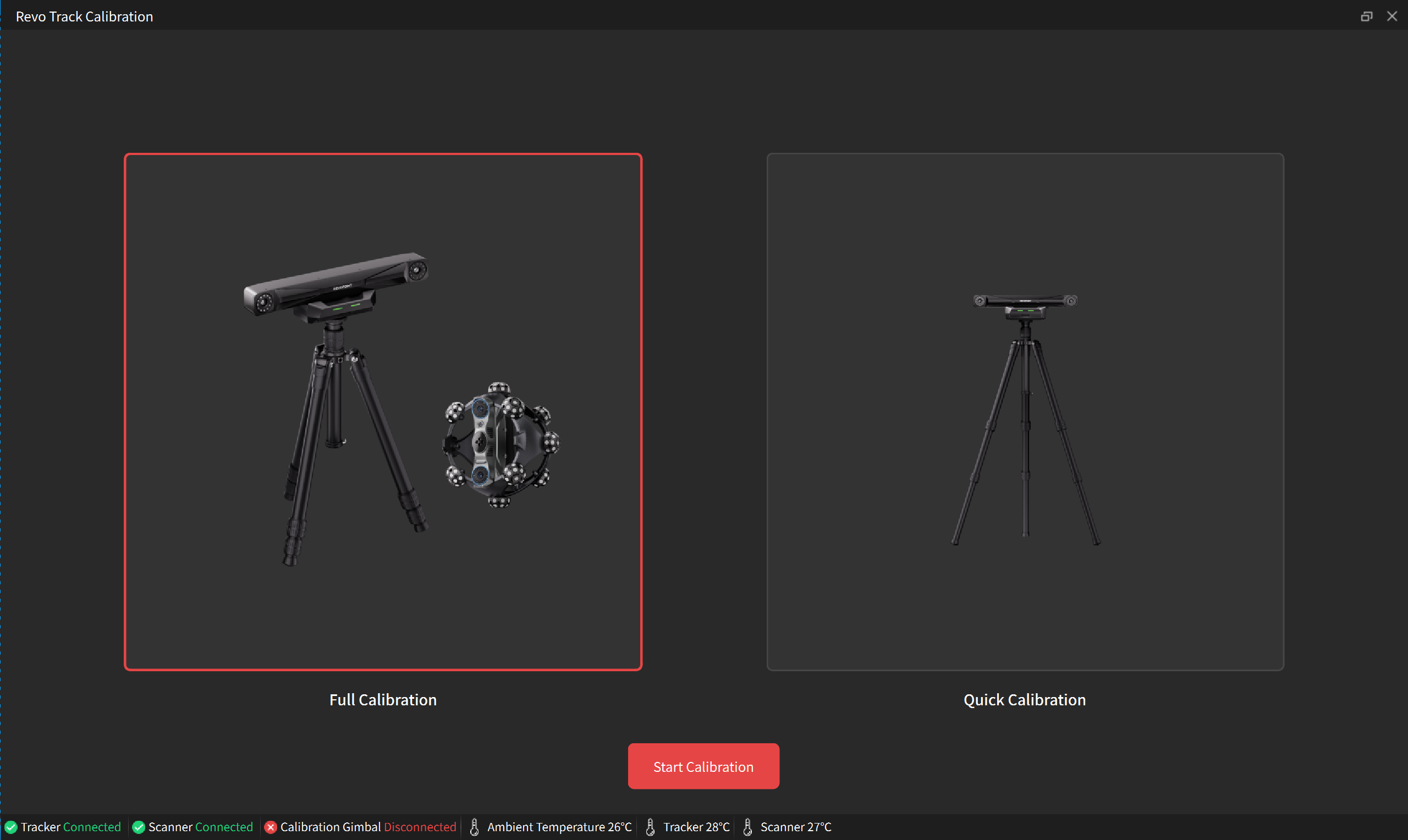

If the accuracy check result fails, click Device Calibration to proceed to calibration. For the initial calibration, it is recommended to perform full calibration.
Note: After entering the calibration process, the software will automatically warm up the device.
-full calibration-a.png)
3) Import SN Info
Follow the on-screen prompts to scan the QR codes on the Calibration Pole and the Calibration Board, then click “Download and Import Online” to import their SN info.
4) Start Scanner Calibration

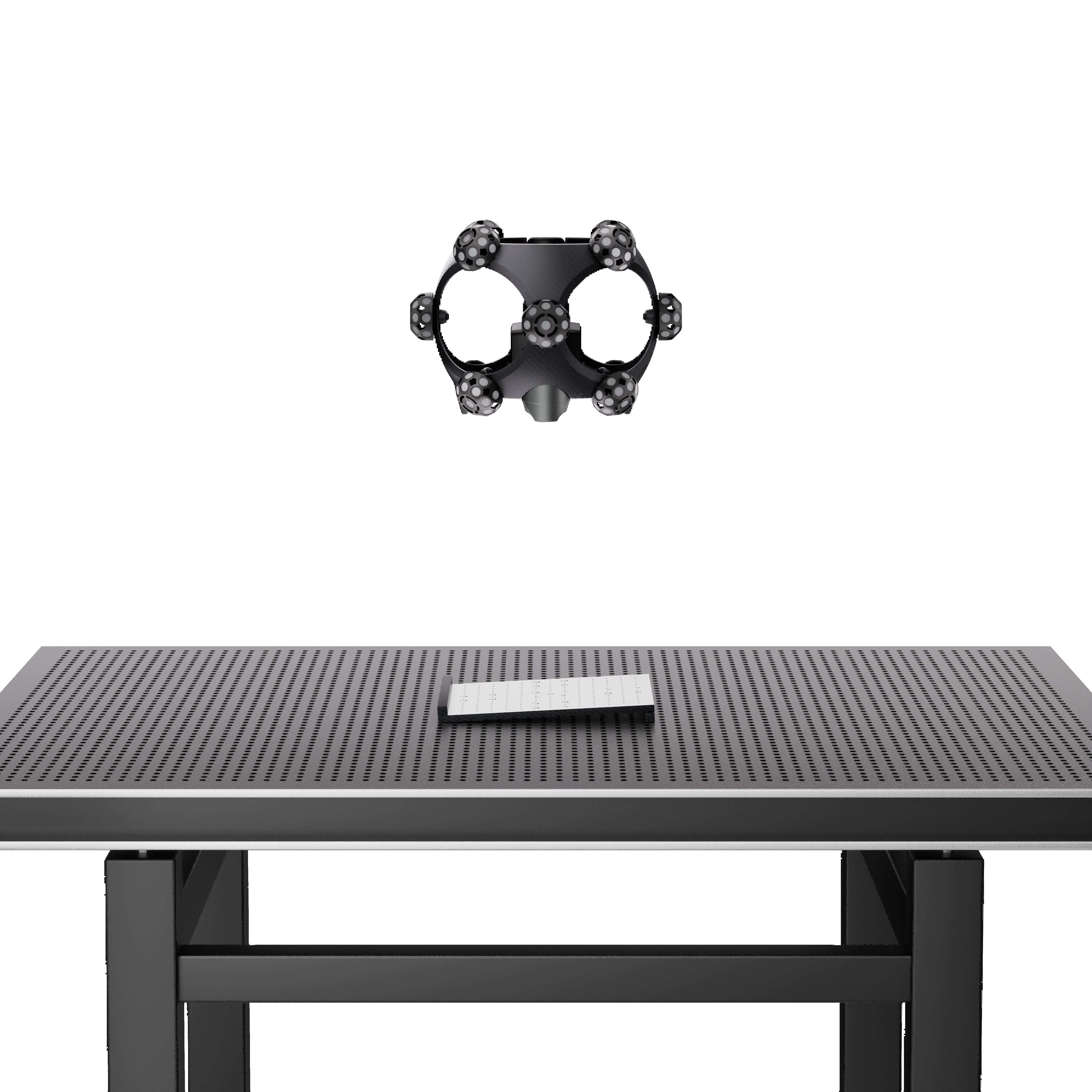

Place the Calibration Board flat on the table with the white side facing up. Hold the Scanner with its cameras facing the board. Follow the on-screen prompts to adjust the Scanner’s tilt, pitch and height until calibration in all directions is completed.
After Scanner calibration, the software calculates the results. If qualified, click "Continue" to proceed to the Tracker accuracy check and calibration.
¶ 3. Tracker Calibration
1) Tracker Accuracy Check
Step 1: Hold the calibration pole horizontally, stand 2 meters from the Tracker, and align the side with the markers directly towards it. According to the interface prompts, adjust the calibration pole to the designated position to complete the horizontal accuracy check.
Step 2: Hold the calibration pole vertically about 2 meters from the Tracker, align the side with the markers towards it, ensure the inclined side faces downward, and the "up" arrow points upward. According to the interface prompts, adjust the calibration pole to the designated position to complete the vertical accuracy check.
Step 3: Hold the calibration pole vertically, tilt it 45° backward, and position it about 1.5 meters from the Tracker with the side with markers facing it. Ensure the inclined part faces downward and the "up" arrow points upward. Follow the interface prompts to adjust the calibration pole to the specified position. Afterward, perform the accuracy check at the 45° angle.
After the accuracy check, decide if Tracker calibration is needed based on the results. If needed, follow the steps below to perform Tracker Calibration.
2) Connect Tracker Gimbal

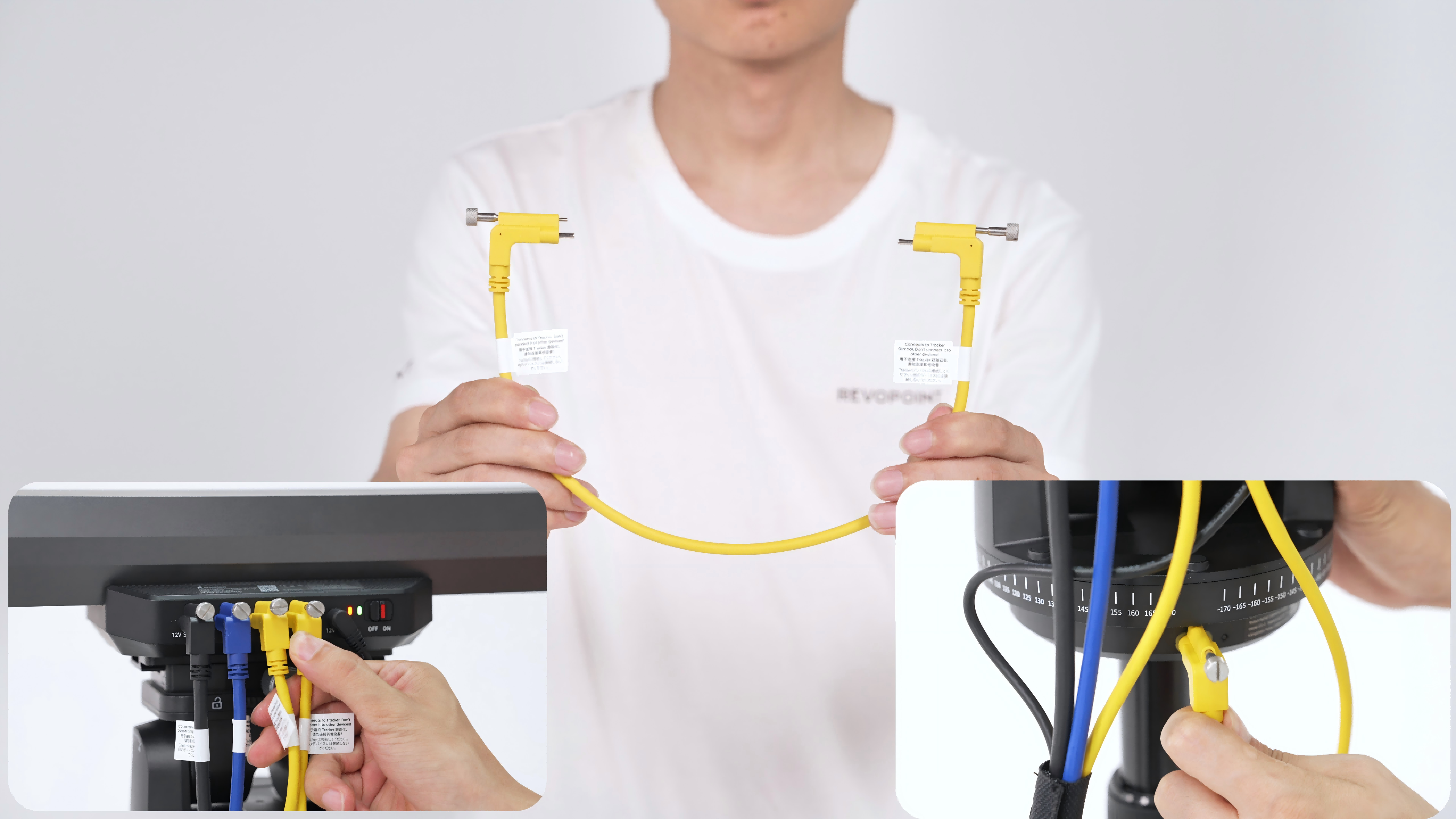

Connect the Tracker Gimbal Cable to Tracker’s "Gimbal" port and the gimbal's port. Then, tighten the screws.
3) Install and Connect Scanner Gimbal
Step 1: Install the Scanner Gimbal onto the Scanner Tripod with its bolt.The Scanner tripod's legs have only one standard angle. Please ensure that all legs are set to this angle during use.

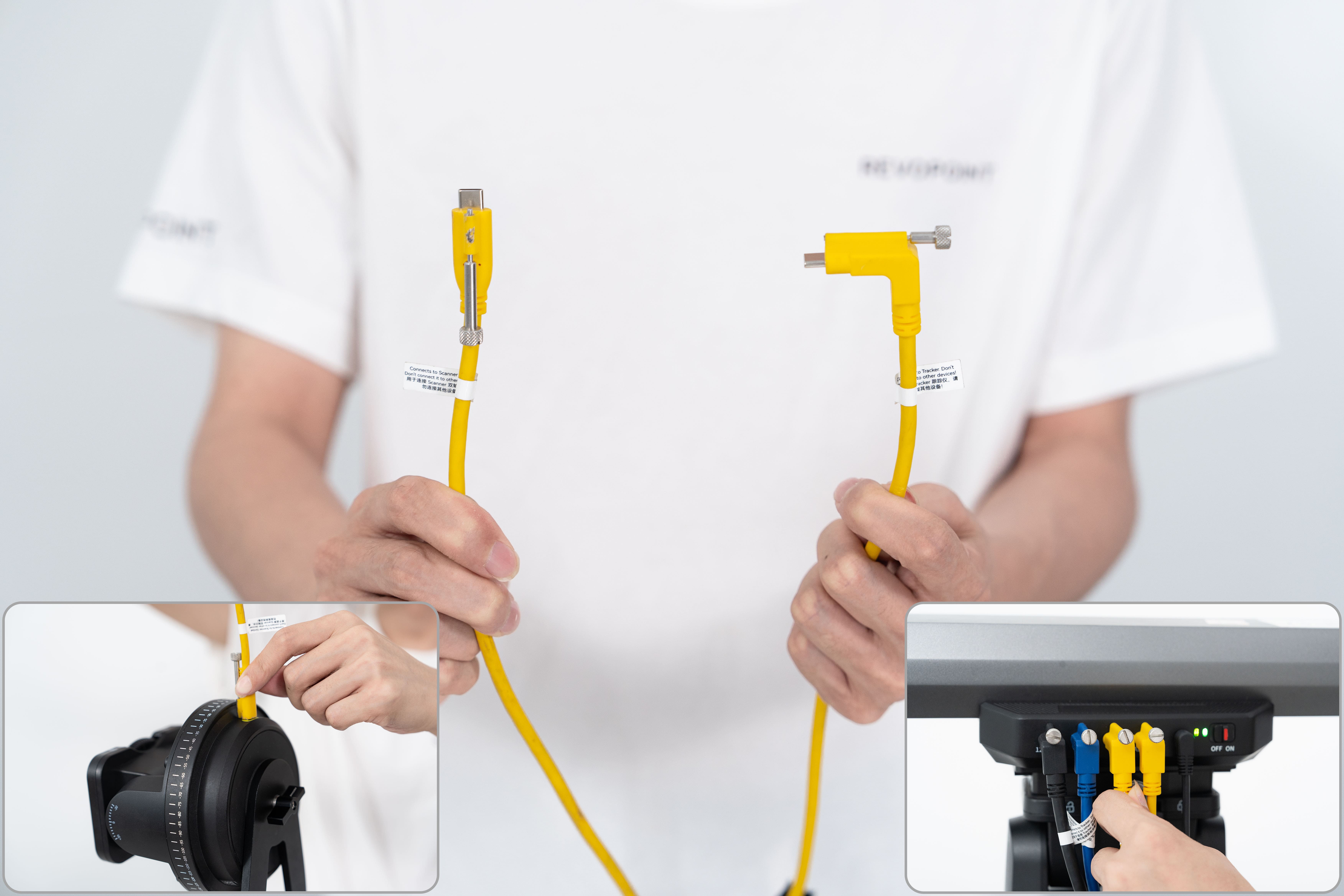

Step 2: Connect the Scanner Gimbal Cable’s L-shaped end to Tracker’s "Gimbal" port and tighten the screws. Connect straight end to the gimbal's port and tighten the screws.
Attach the cable to the Scanner Tripod using cable ties to prevent tangling with the Calibration Pole during calibration.
4) Install the Calibration Pole
Keep the Calibration Pole upright with the inclined surfaces facing the table. Mount the Calibration Pole onto the Scanner Gimbal. Then, slide the latch until the screws are tightened.
5) Start Tracker Calibration
Position the Scanner Tripod with the Calibration Pole facing the Tracker. Adjust the Tracker Tripod’s height and ensure that all the legs are at the same angle. Then, following the software prompts, calibrate the Tracker at different distances.

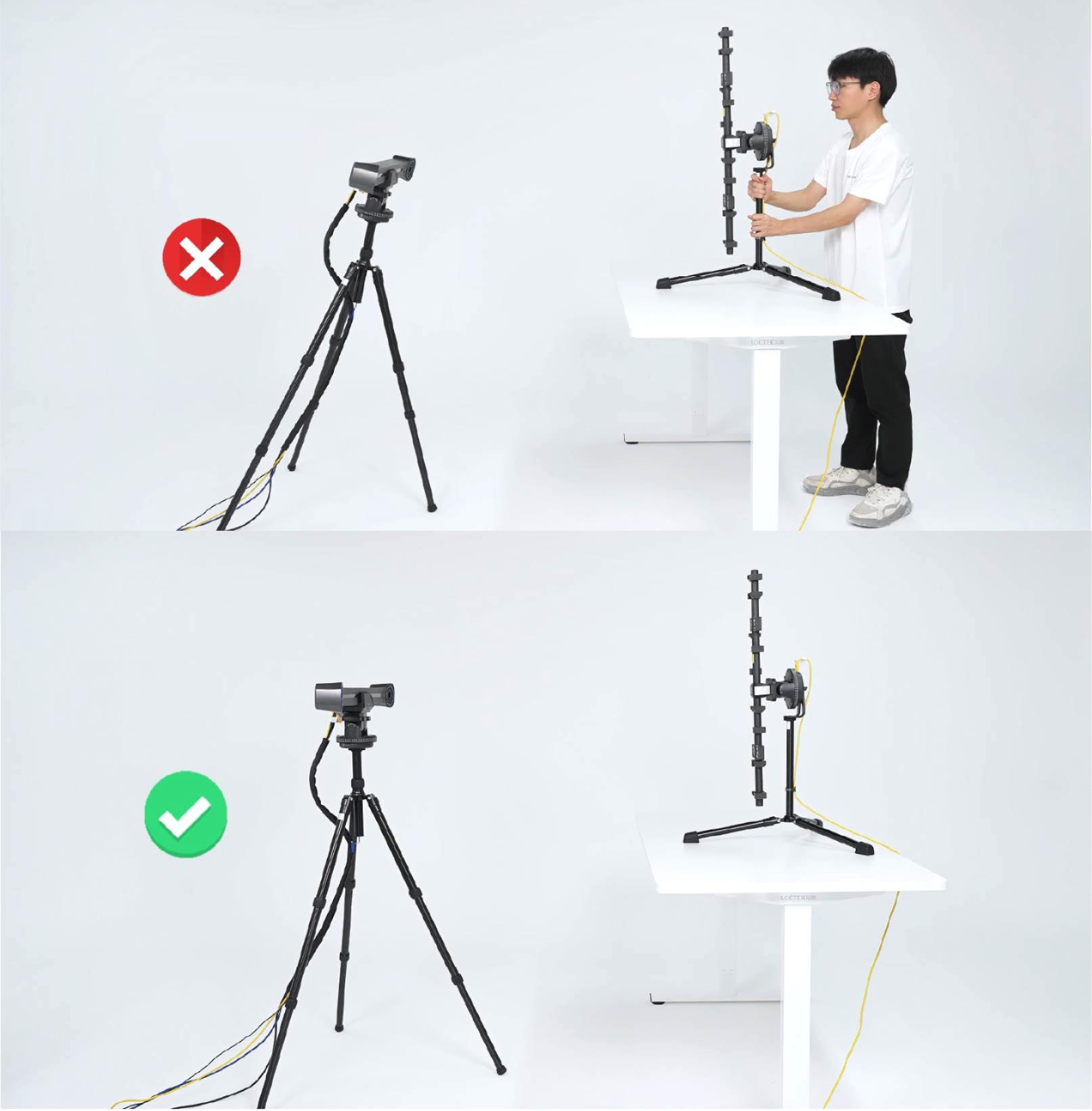

Note: When performing Tracker and Hand-eye Calibrations, ensure that the Tracker Tripod's legs are adjusted to the minimum angle and extended to their full length. Then, adjust the tripod's height using its central column.
.png){kind=tracking}
During the Tracker calibration process, do not cover the Tracker's cameras and make sure only the markers on the calibration Pole are within the Tracker's field of view.

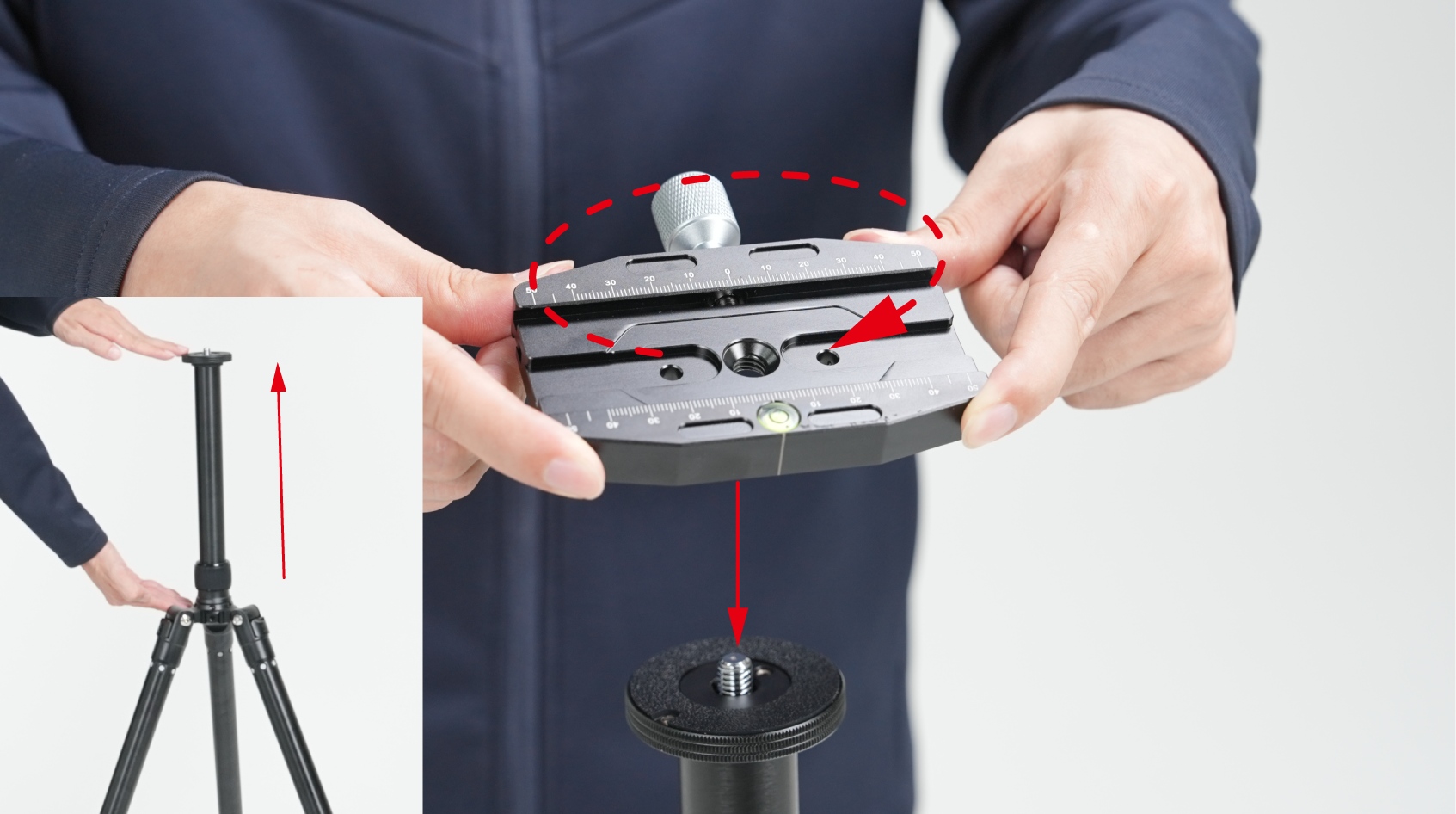

1) Install the Quick Release Clamp
Extend the tripod’s center column to its maximum height. Align the central screw hole of the Quick Release Clamp with the screw on the tripod, and rotate the clamp until it’s tightened.
-install the quick release clamp.jpg)

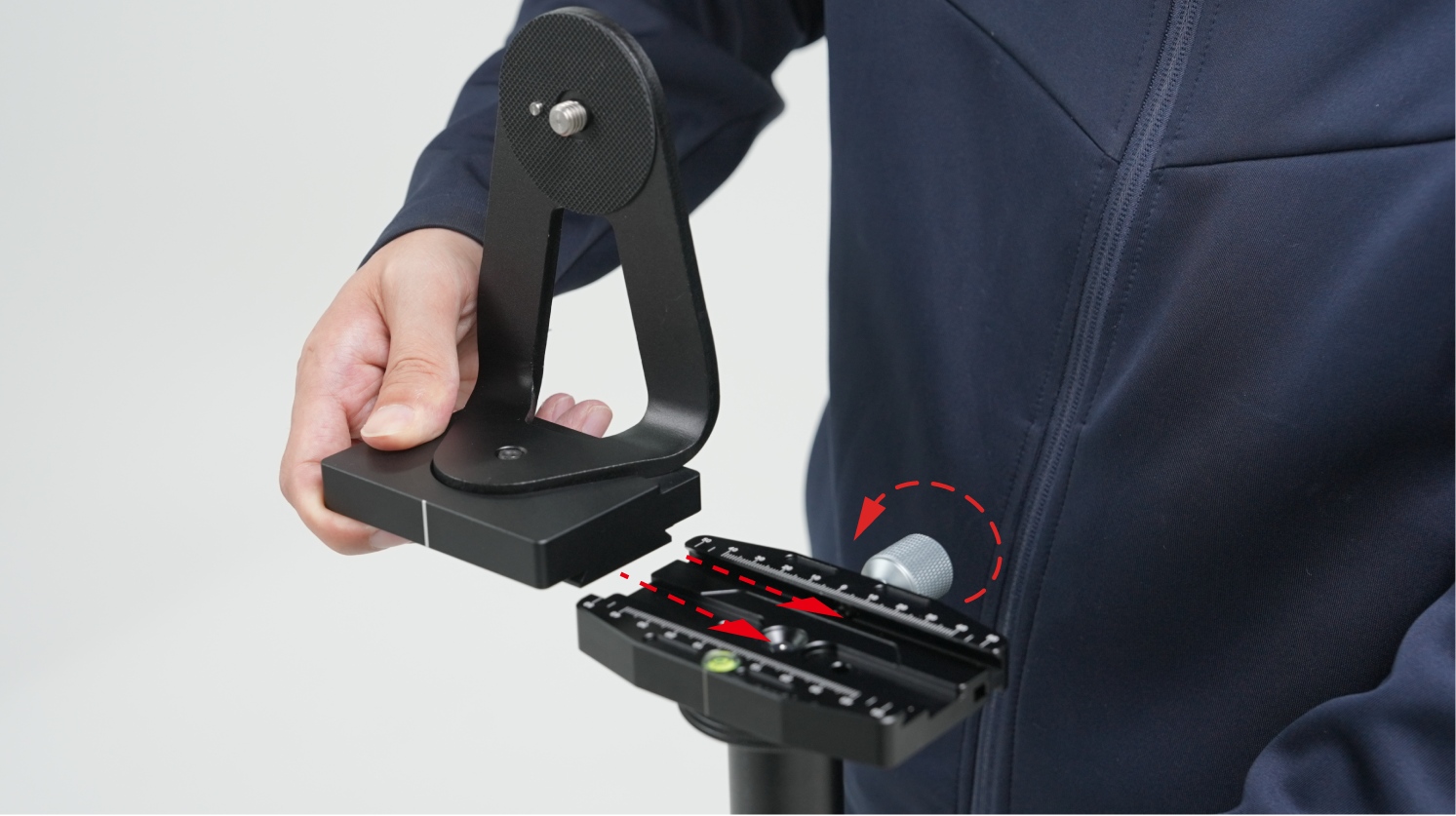

2) Install the Gimbal Adapter Plate
Slide the Gimbal Adapter Plate into the groove of the Quick Release Clamp, and ensure the white lines on the front are aligned. Then, tighten the locking knob.
-install the adapter plate.jpg)

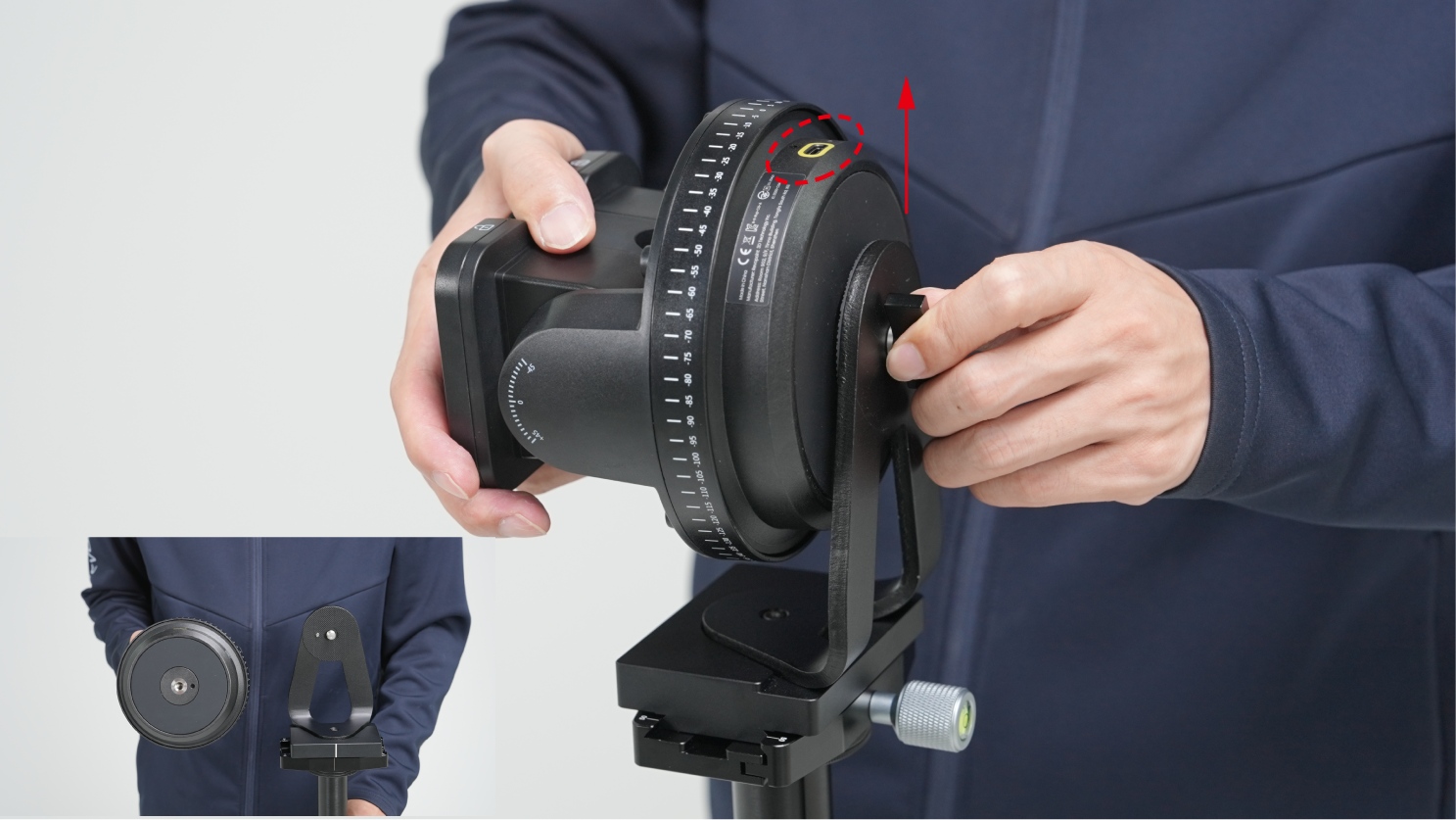

3) Install the Gimbal
Keep the gimbal’s USB-C port facing upward, and secure the gimbal to the adapter plate using the supplied screw.
-install the gimbal-a.jpg)

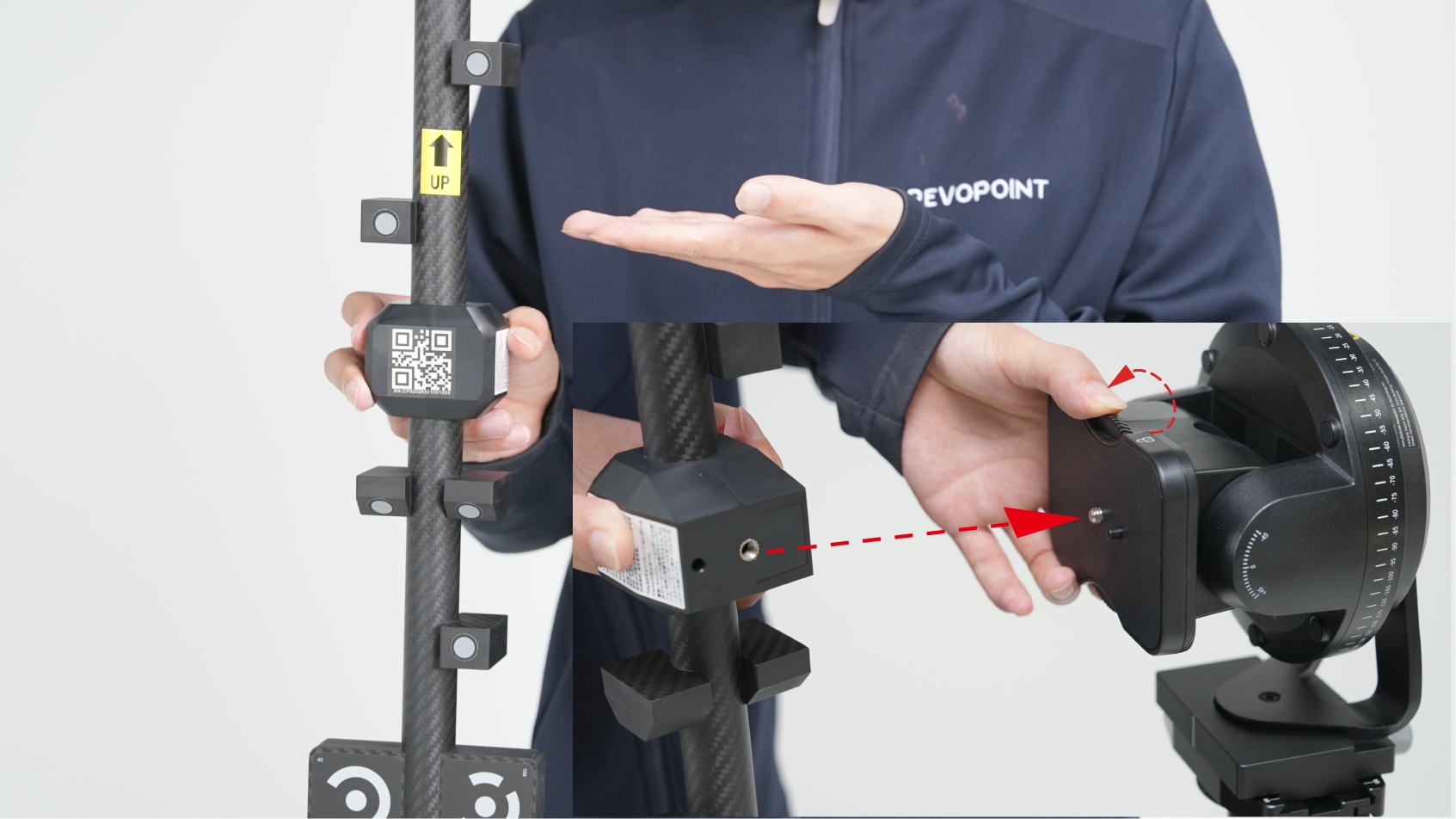

4) Install the Calibration Pole
Keep the Calibration Pole’s Up arrow facing upward. Align the pole’s screw hole with the screw on the gimbal, then tighten the thumbwheel until the pole is securely fastened.
-install the calibration pole-a.jpg)

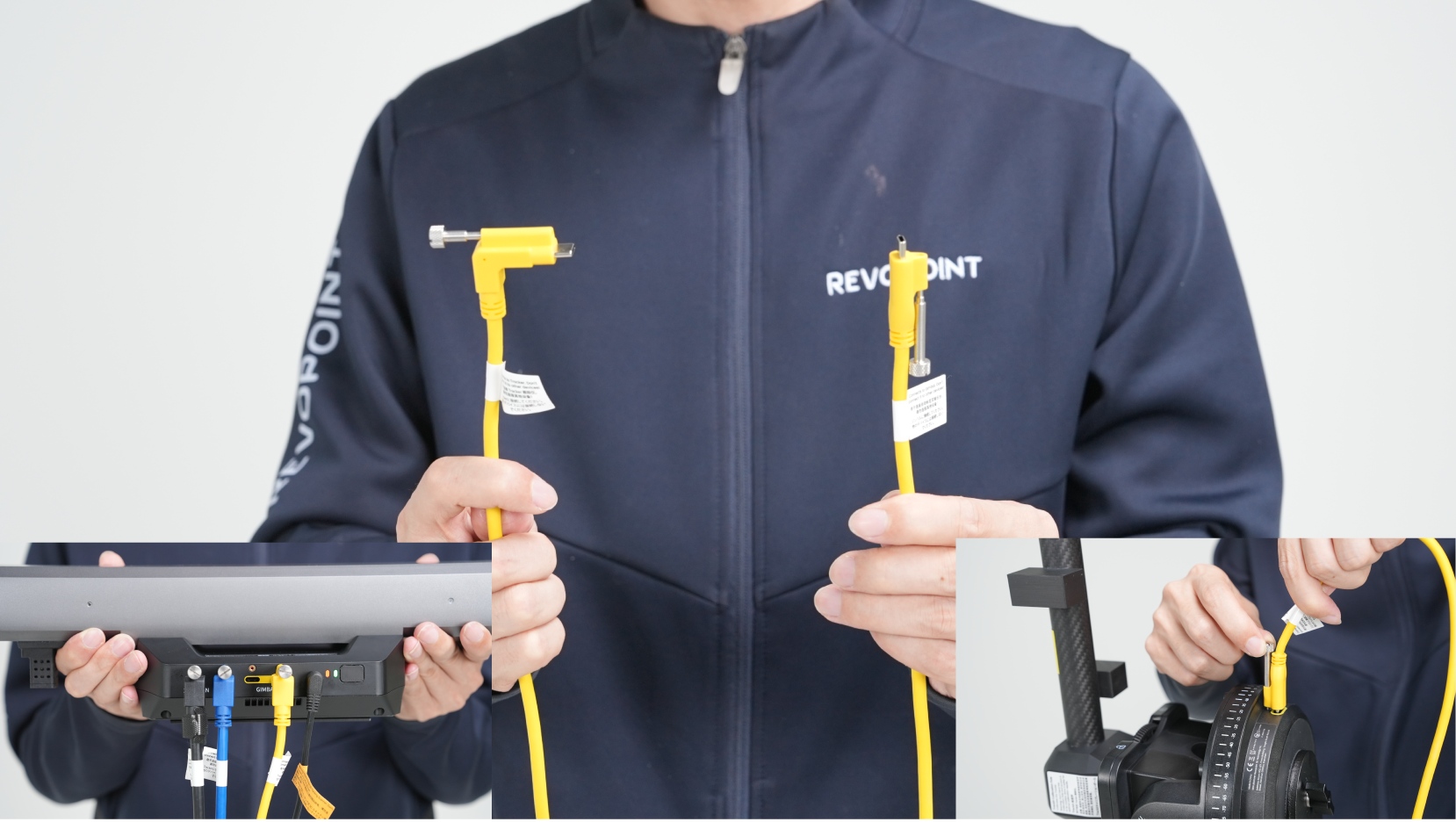

5) Connect the Gimbal to the Tracker
Connect the gimbal to the gimbal port on the back of the Tracker using the gimbal Cable (yellow cable) and tighten the screws.
-connect the gimbal-a.jpg)

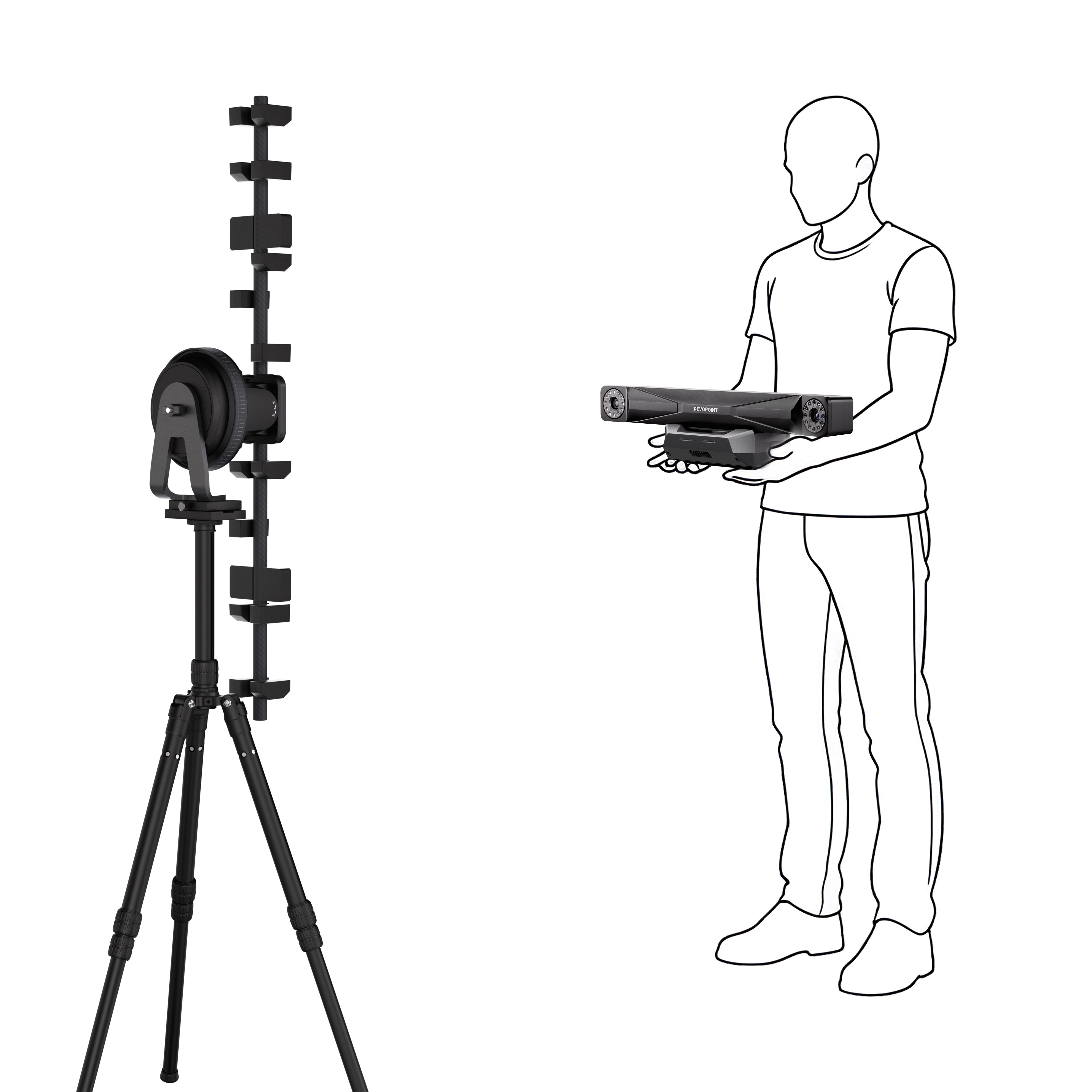

6) Tracker Calibration
Hold the Tracker with its cameras facing the Calibration Pole. Then move the Tracker according to the software prompts until it is aligned with the indicator frame on the interface. Perform the Tracker calibration at different distances.
--trcaker calibration.jpg)

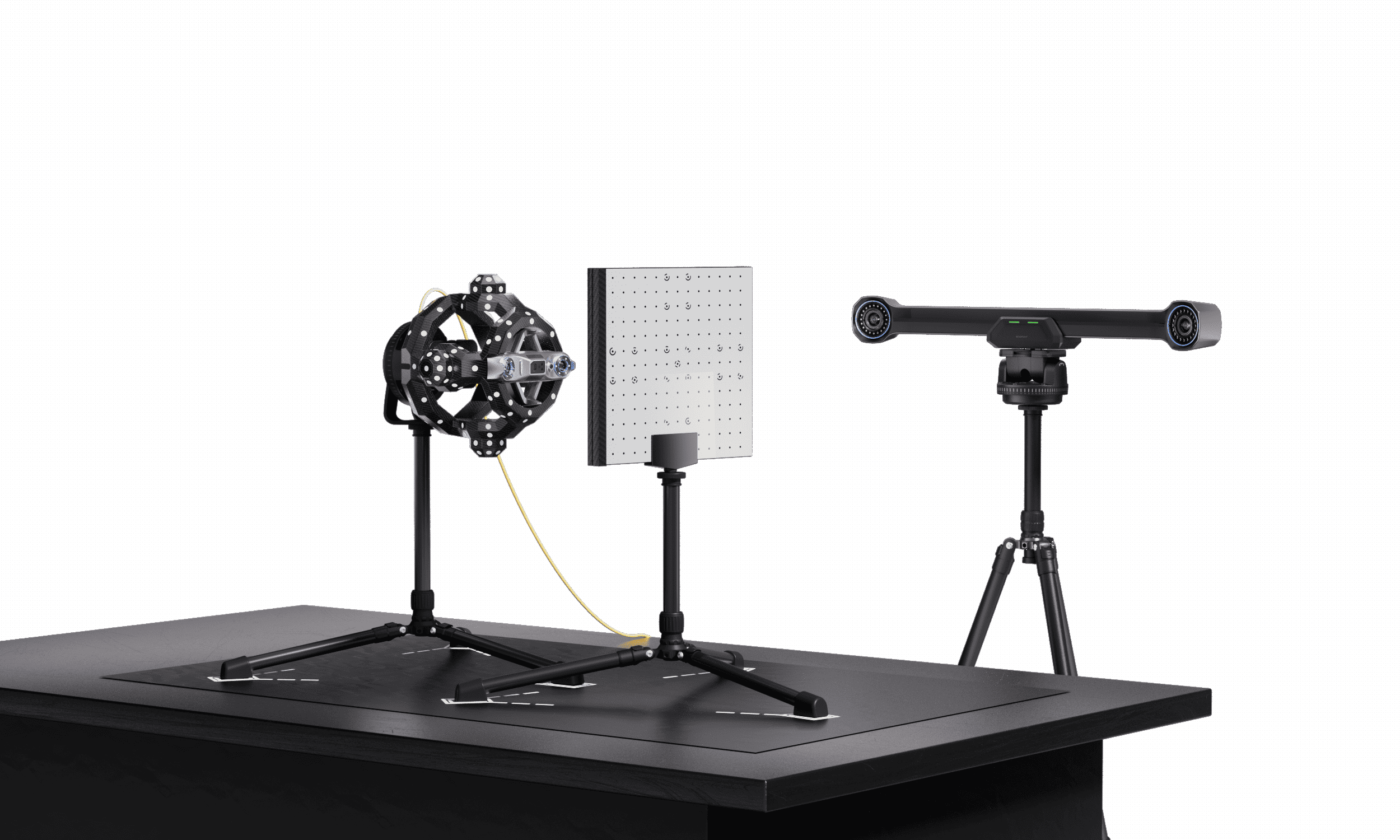

¶ 4. Hand-Eye Calibration
1) Place the Positioning Pad

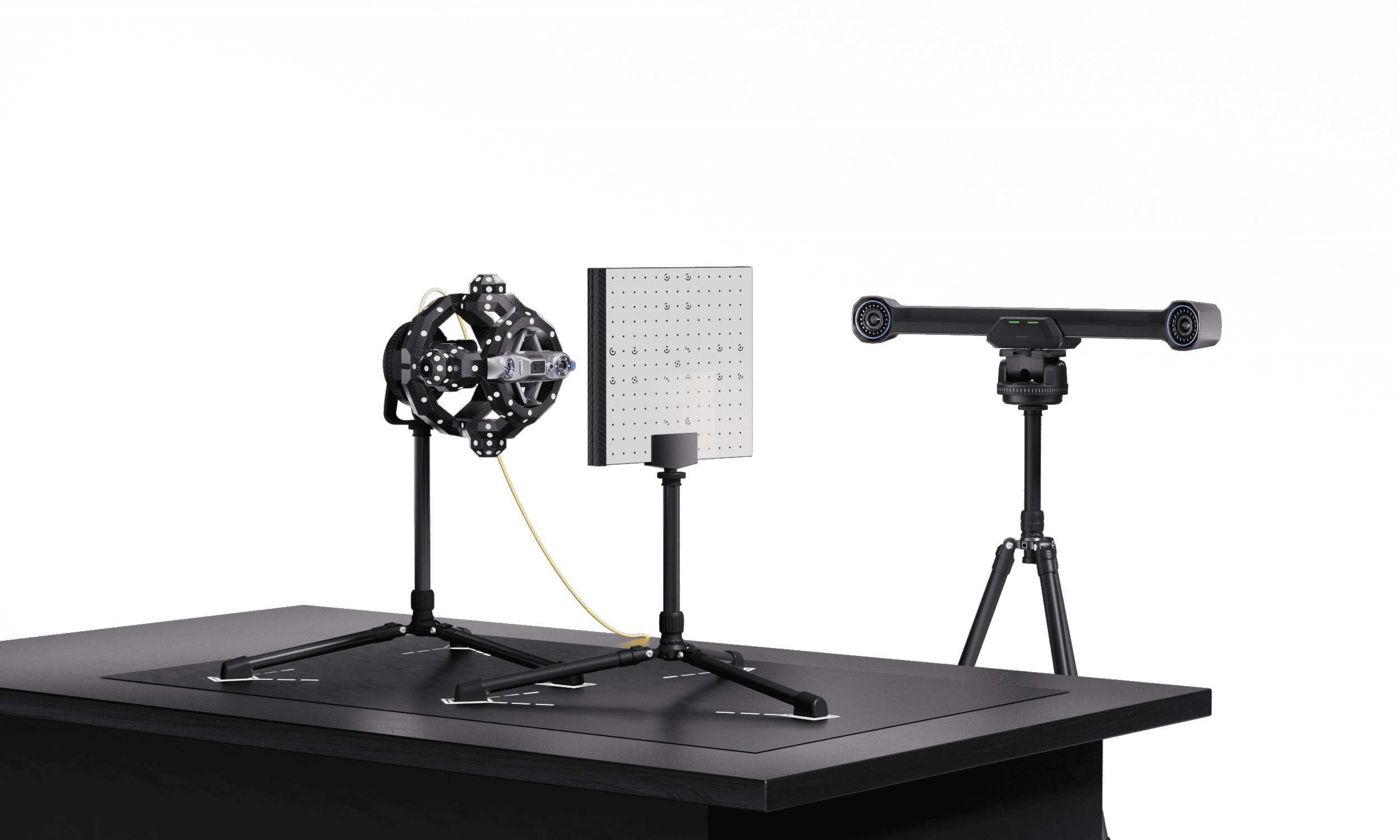

Unfold the Positioning Pad on a table. Position the Scanner Tripods and Calibration Board Tripods as shown on the Positioning Pad. The two Tripods' legs have only one standard angle. Please ensure that all legs are set to this angle during use.
2) Install the Scanner
Connect the Scanner to the gimbal using the Scanner Adapter. Then, slide the latch until the screws are tightened.
Note: When installing the Scanner, ensure its cable port faces the Tracker.
3) Install the Calibration Board
Place the Calibration Board into its tripod within the white outline, with the black side facing the Scanner and the markers side facing the Tracker.
Note: Ensure no markers are blocked during the placement.
4) Start Hand-eye Calibration
Place the Tracker facing the two tripods and do the hand-eye calibration according to the on-screen prompts in the software.
Note: During the hand-eye calibration process, avoid blocking the Tracker's camera and ensure that only the Scanner and the markers on the Calibration Board are in the Tracker's line of sight.

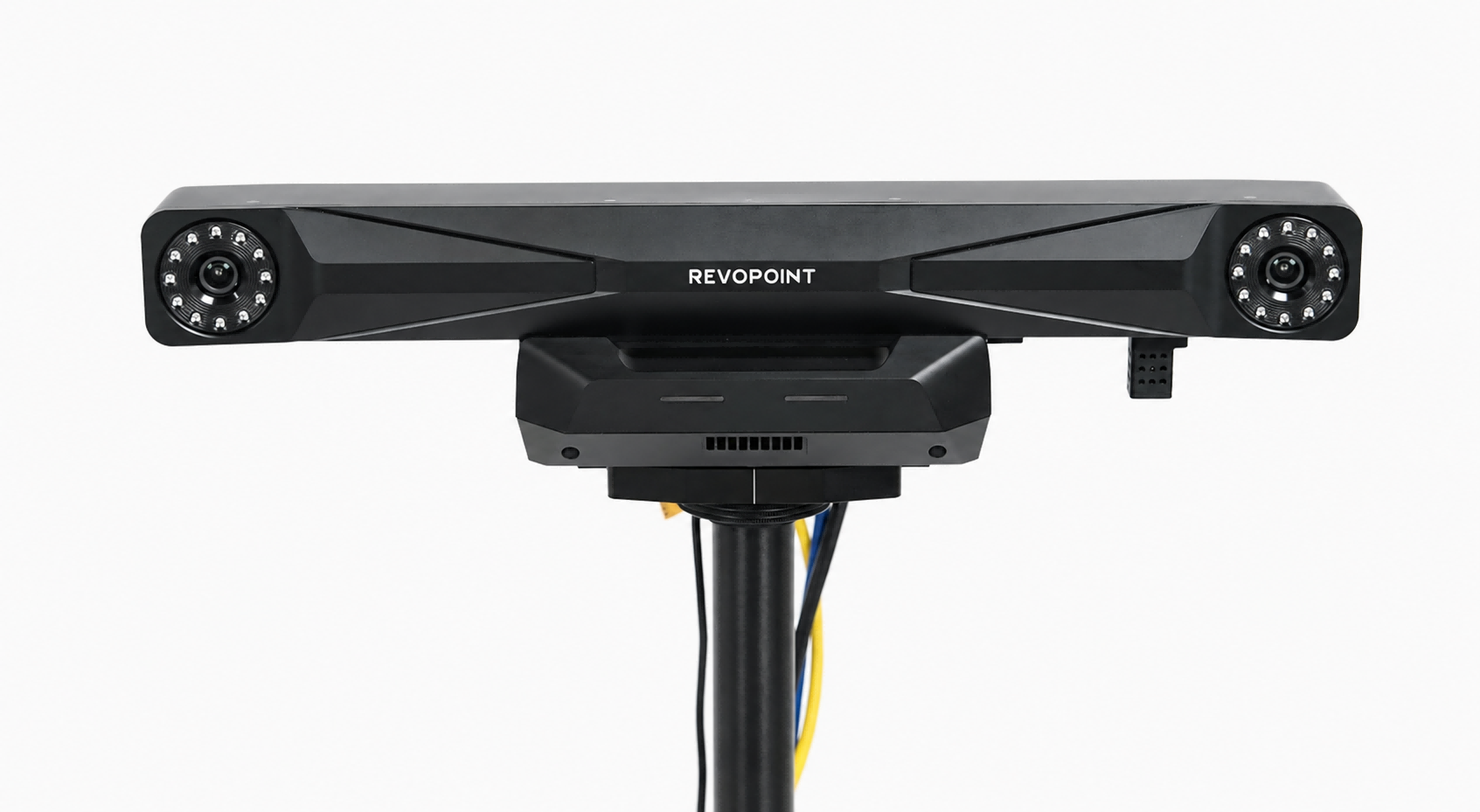

1) Install the Tracker
Remove the Calibration Pole, Dual-axis gimbal, and Gimbal Adapter Plate from the tripod, and mount the Tracker onto the Quick Release Clamp.
-install the tracker.png){kind=tracking}

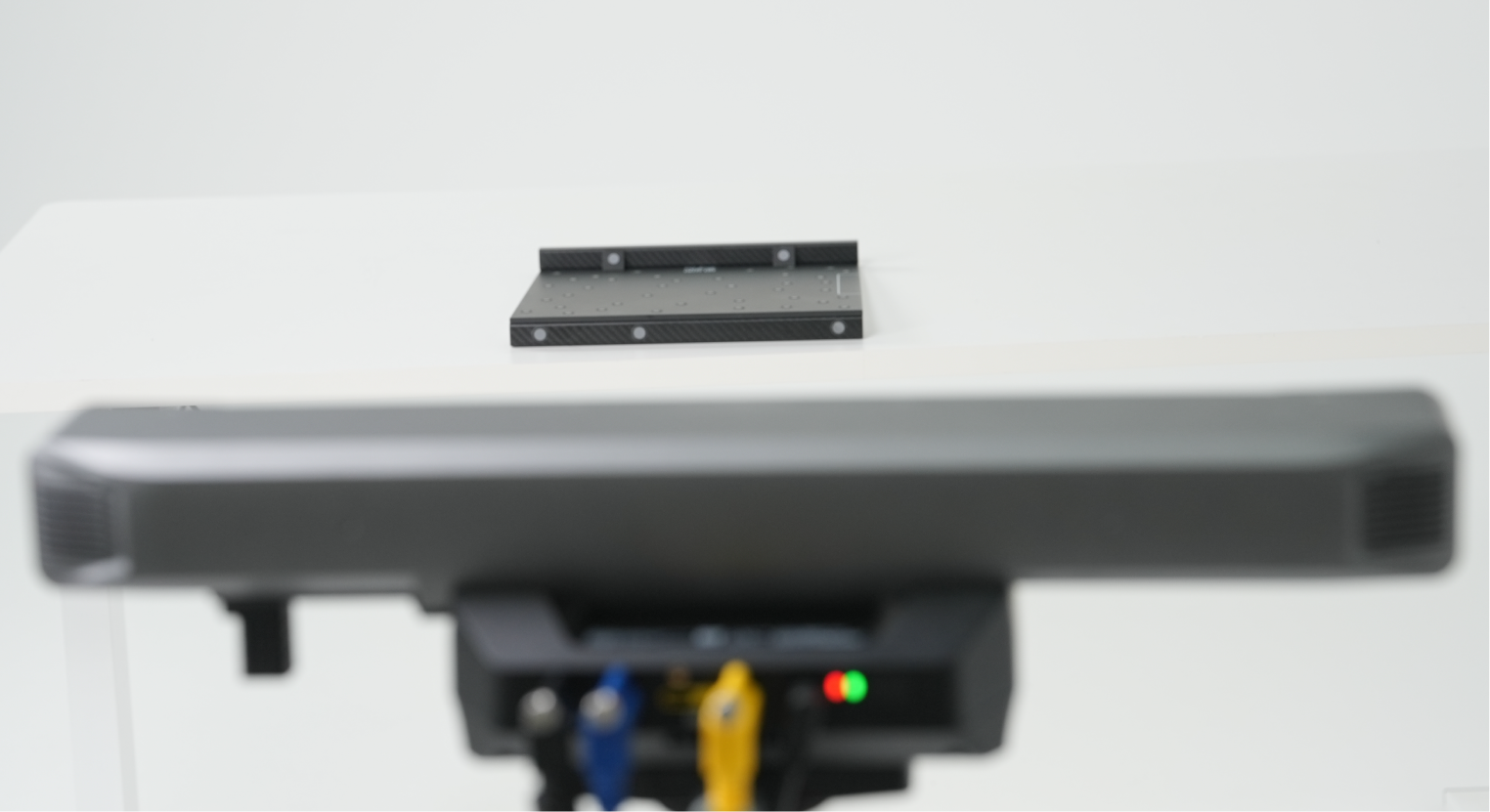

2) Place the Calibration Board
Place the Calibration Board flat on the table with the black side facing up and the marker side facing the Tracker. Move the Tracker according to the on-screen prompts until the board is aligned with the indicator frame on the interface.
-place the calibration board.png)

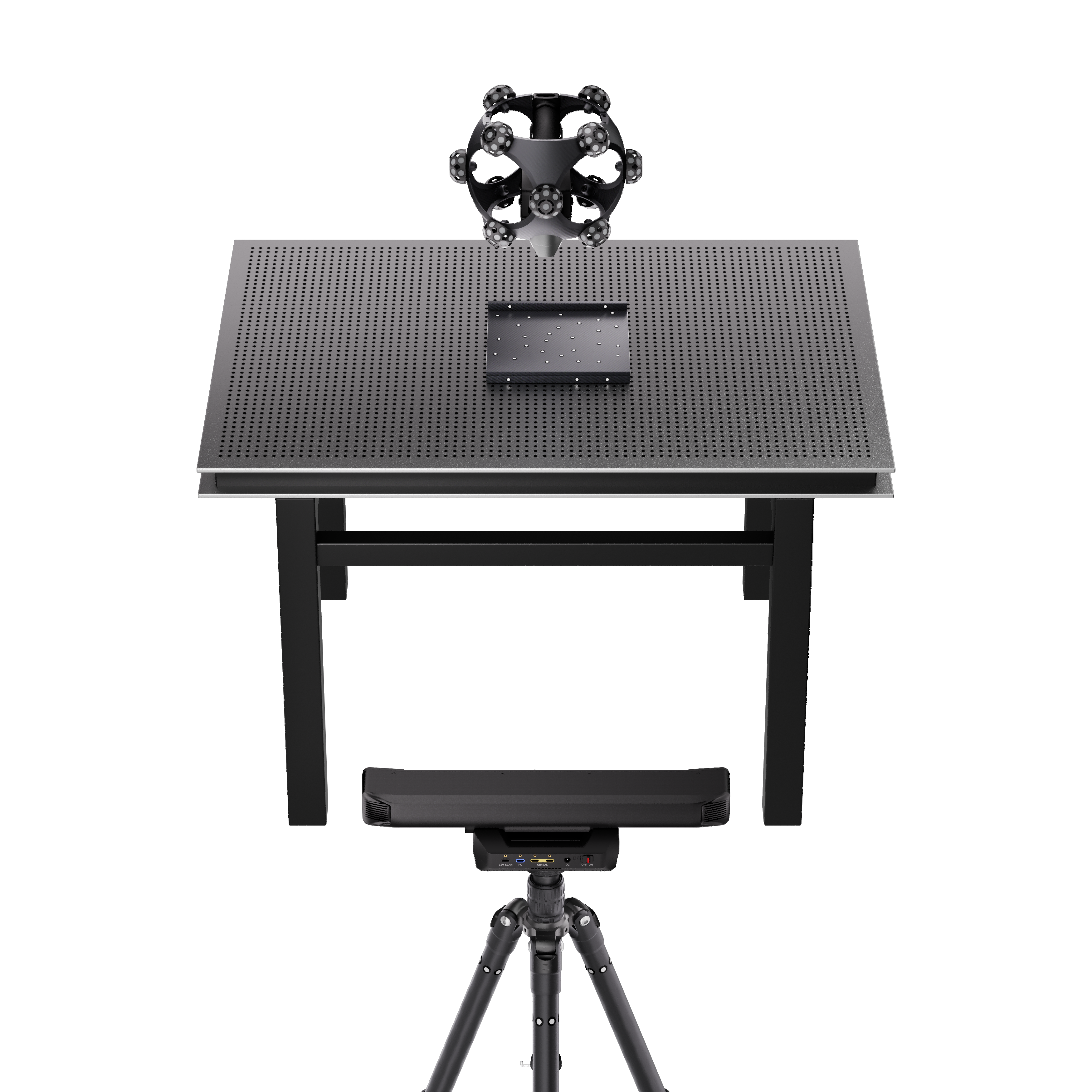

3) Hand-eye Calibration
Hold the Scanner and rotate it to the designated angles as instructed on the screen. Perform calibration for each pose in the left-right and front-back directions. Repeat the above steps until the hand-eye calibration is completed for all required angles.
Note:When holding the Scanner, avoid obstructing the Tracker's FOV. Ensure that the Tracker maintains a clear view of both the Scanner and the Calibration Board.
.png)
